日本SAKAI酒井联轴器UA-40C-10-14/UCN-125T7-38-42
发布时间：2024-10-09

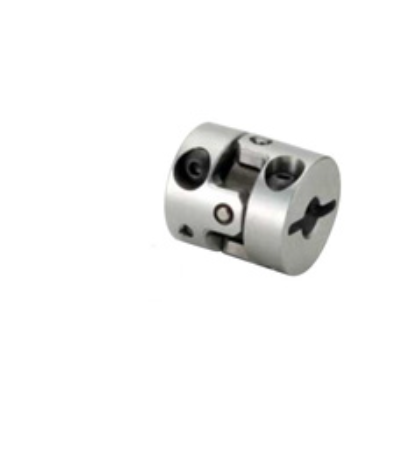

日本SAKAI酒井联轴器UA-40C-10-14/UCN-125T7-38-42
日本SAKAI酒井联轴器UA-40C-10-14
Joints (UA-40C-10X14)
Precision Shaft Fitting, Correctable, UA-C Series
Part Number: UA-40C-10X14
•Type : Standard Type
•Application : Encoder, Servo Motor, Standard, Stepping Motor
•Body Material : A2017
•Feature : High Torsional Rigidity, Low Moment of Inertia
For complete product overview and details on Precision Shaft Fitting - Correctable, UA-C Series see the sections below:
Configured Specifications
| Type | Standard | Allowable Torque Range(N⋅m) | 3.01 to 5.00 |
|---|---|---|---|
| d1(d)(Ø) | 10 | d2(Ø) | 14 |
| Outer Diameter A(Ø) | 40 | Full length L (LL)(mm) | 40 |
| Maximum Rotational Speed Range(r/min) | 4001~10000 | Features | High torsional rigidity / Low Inertia Moment |
| Body Material | [Aluminum] A2017 | Application | Standard / Servo Motor / Pulse Motor / Encoder |
| Allowable Torque(N⋅m) | 5 | Maximum Rotational Speed(r/min) | 6000 |
| Allowable Lateral Misalignment Range(mm) | 0.02~0.2 | Allowable Lateral Misalignment(mm) | 0.2 |
| Allowable Angular Misalignment(deg) | 1 | Moment of Inertia(kg·m2) | 2.66X10-5 |
| Max. Torque(N·m) | 10 | RoHS | 10 |
