日本Leimac照明设备IDGB-50M4PG-24-TP
日本Leimac照明设备IDGB-50M4PG-24-TP

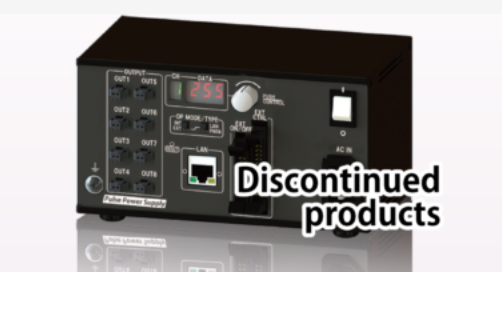

IDGB-50M4PG-24-TPProgramable Digital PWM Controller – IDGB-PG series
Dec. 28, 2022 End of production
Replacement：IDGC-50M4-24
| Model | IDGB-50M4PG-24-TP |
|---|---|
| Product Number | 457-250 |
| Channel numbers | 4ch |
| Output Power | 50W |
| Input Voltage | AC100~240V |
| Operating Frequency | 50/60Hz |
| Rated Output Voltage | DC24V |
| Rated Output Current | 2.1A |
| Light Control System | PWM approx. 125kHz |
| External Control | External On/Off Control |
| Internal Light Control Method | 8-bit digital(256 levels) |
| External Light Control Method | Ethernet communication |
| Output Connector | SM connector(SMP-03V-BC) |
| Operating Temperature | 0~+40℃ |
| Operating Humidity | 20~70% (non condensing) |
| Weight | 1200g |
| Conformity Standard |   CE(EN61010-1,EN55011,EN61000-6-2) |
| China RoHS |  |
| Options |
