日本mitsuboshi三星正时皮带轮60S8M0250-B/P60S8M0250B
Configured Specifications
Type
Timing pulley
Belt Series
S8M
Belt Width Used (mm)
26
Number of Teeth
60
Pulley Shape
B
Material
[Steel] Steel
Surface Treatment
No
Outermost diameter
161
Pulley/Idler
Pulley (No Bearing)
Belt Shape Type
Round tooth profile super torque
Keyway
-
Shaft Bore Dia. d
50
Shaft hole specifications
H (round hole)
-
Product Description

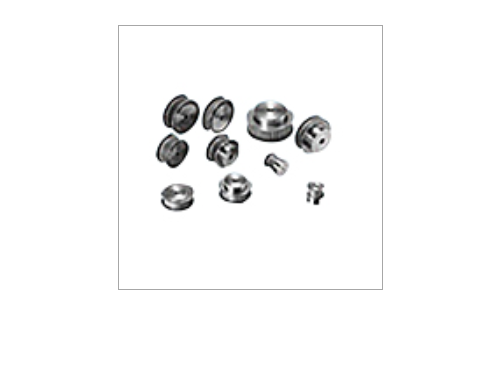

Timing Pulley S8M Type
This Timing Pulley has an easily specified shaft hole type and diameter. MISUMI can machine the shaft hole for the pulley that is compatible with the Mitsuboshi belt, even without the need for detailed drawings
[Feature]
● Belt Width Used (mm.) : 15, 25, 26, 30, 40 and 60
● Applicable with Belt Type : S8M
● Number of Teeth Minimum/Maximum : 18 to 120
● Shaft Bore Diameter Minimum/Maximum (mm.) : 12 to 62
● Shaft Bore Specs. : Can select between Round Hole, Round Hole + Tap and New JIS keyway + Tap
● Material : Steel
[Application]
Timing pulleys are frequently utilized in systems that incorporate timing belts to regulate and govern the movement of the machinery.
