日本三木联轴器SFC-020DA2-8B-8B/SFC-050DA2-19B-22B
发布时间：2024-11-20
日本三木联轴器SFC-020DA2-8B-8B/SFC-050DA2-19B-22B

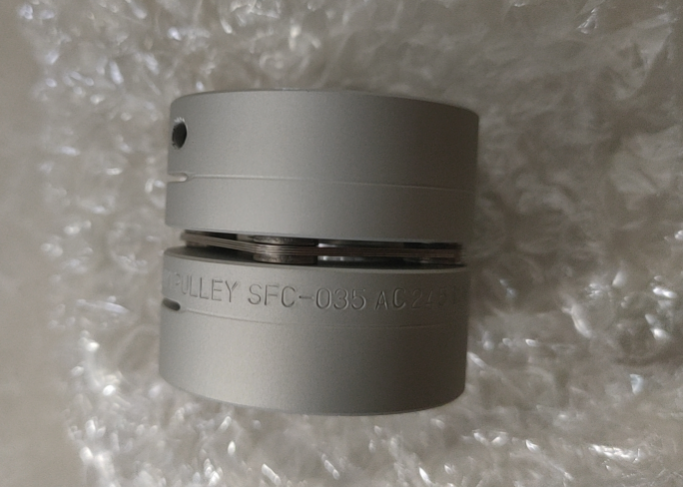

日本三木联轴器膜片SFC-020DA2-8B-8B
Flexible Shaft Couplings (SFC-020DA2-8B-8B)
Servo, Double Element, Aluminum Alloy, SFC
Part Number: SFC-020DA2-8B-8B
Uses lightweight, high-strength aluminum alloy for clamp hub. Extremely high torsional rigidity supporting high responsiveness.
Configured Specifications
| Type | Type of Flat Springs | Allowable Misalignment | Angular Misalignment / Eccentricity / Axial Misalignment |
|---|---|---|---|
| Application | Servo Motor / Stepping Motor / Encoder | Allowable Torque Range(N⋅m) | 1.01 to 3.00 |
| Hole diameter d1(mm) | 8 | Hole diameter d2(mm) | 8 |
| O.D.(Ø) | 26 | Full Length(mm) | 32.3 |
| Maximum Rotational Speed Range(r/min) | 4001~10000 | Features | High torsional rigidity / High Torque / High accuracy / High durability / Backlash 0 / Low Inertia Moment / Small |
| Body Material | Aluminum | Category | Coupling body |
| Allowable Torque(N⋅m) | 2 | Maximum Rotation Speed(r/min) | 10000 |
| Allowable Angular Misalignment(deg) | 2 | Allowable Lateral Misalignment Range(mm) | 0.02 to 0.2 |
| Allowable Lateral Misalignment(mm) | 0.15 | Disc Part Material | Stainless Steel |
| Operating Temperature Range(°C) | -30～100 | Allowable Axial Clearance (±)(mm) | 0.15 |
| Moment of Inertia(kg·m2) | 3.43×10-6 | Mounting Method | Clamping |
| The size of the tapered adapter(mm) | - | Keyway Standard | - |
| Disc Specifications | Double | Allowable Angular Misalignment Detail(deg) | 1 (one side) |
| RoHS | 10 | - |
