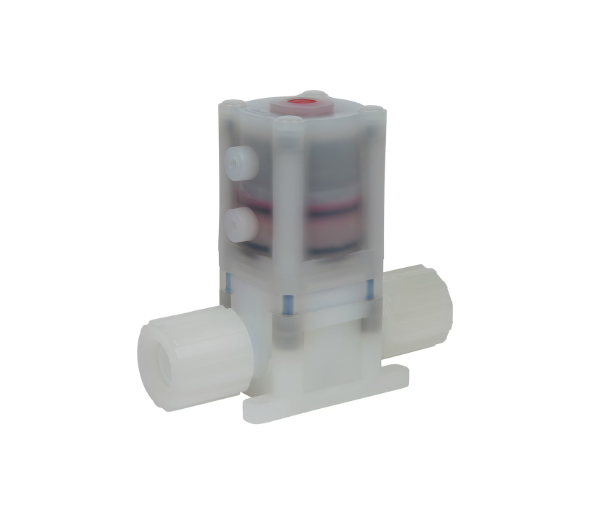

日本Parker派克阀PV2208VN1FL08FL08T
发布时间：2024-11-27
日本Parker派克阀PV2208VN1FL08FL08T
Technical Specifications
Material Cover Type: PVDF Connection 2 Style: Flare Body Material: PFA Connection 2 Size: 1/2" Valve Size (Inch): 1/2" Connection 1 Size: 1/2" Connection 1 Style: Flare Diaphragm Material: Modified PTFE Connection Material: PFA Nut Housing Material: PVDF Housing Connection Thread Size (inch): 10-32 UNF Spring Material: SS, Fluoropolymer Coated Screw Material: SS Maximum Operating Pressure: 80 psig Actuation Pressure: 60 to 100 psig Operating Temperature: 32 to 212 °F, 0 to 100 °C Proof Pressure: 120 psig Burst Pressure: 200 psig Flow Rate: 2.3 Actuation: Pneumatic-Normally Closed Special Options: None
