日本伊原Ihara过滤器INF2-8D-BA(60)
发布时间：2024-12-02
日本伊原Ihara过滤器INF2-8D-BA(60)
日本伊原Ihara过滤器INF2-8D-BA(60)

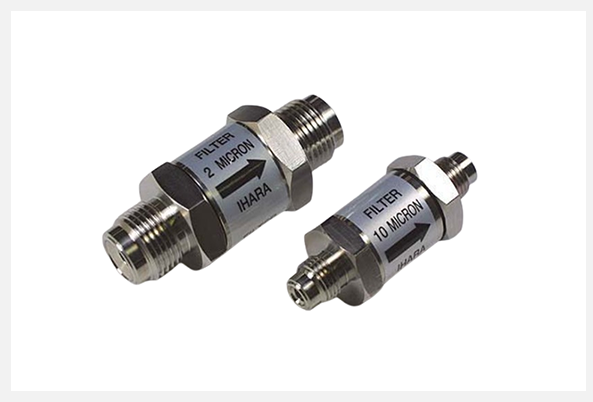

IHARA INF2 Series Inline Filter
IHARA SCIENCE CORPORATION
IHARA INF2 Series Inline Filter
Product Made In Japan
Manufacturer: IHARA SCIENCE CORPORATION
Model: INF2 Series
Features
Oil-free treatment by precise cleaning for fluid contact partsEas replacement of the element for excellent maintenance
Specification
| Size | 1/4″ | 3/8″ | 1/2″ |
|---|---|---|---|
| W. Pressure | 16.2MPa | ||
| W.Temperature | -10 ~ +150°C | ||
| Nominal Element Pore Size (*1) | 2 pm | 10pm | 60pm |
| Option :1pm, 5pm, 20pm | |||
| Allowable Back-pressure | IMPa | ||
| External Leak | lxl011Pa,m3/sec. | ||
Dimensions
| Type | L | H | T (UNF) |
|---|---|---|---|
| INF-4VM | 71.6 | 26 | 9/16-18 |
| INF-8VM | 81.5 | 32 | 7/8-14 |
| Type | L (mm) | L1 (mm) | F (mm) | H (mm) | B (mm) |
|---|---|---|---|---|---|
| INF-4D | 74.8 | 59.8 | 15.4 | 26 | 14.29 |
| INF-6D | 81.7 | 66.7 | 17 | 32 | 17.46 |
| INF-8D | 87.3 | 66.7 | 23 | 32 | 22.23 |
Material
| Body | Element | Gasket |
|---|---|---|
| 316 SS | 316 SS | 316 SS (PFA Coated) |
Model Numbering
