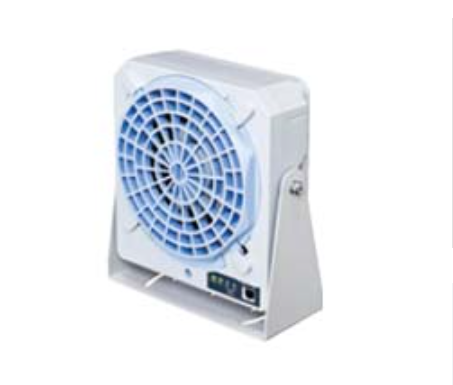

日本松下panasonic离子风扇ER-F12A

Item	Specifications
Product Number	ER-F12A
Part Number	ER-F12A
Products Name	Fan Type Ionizer
Product details	Standard fan type
Applicable regulations	CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Charge removal time	1 sec. approx.(±1,000 V → ±100 V) (Note): Typical value at 200 mm 7.874in from directly in front of air outlet, fan speed MAX, straight louver, with no filter installed.
Ion balance	±10 V or less (Note): Typical value at 300 mm 11.811in from directly in front of air outlet, fan speed MAX, straight louver, with no filter installed.
Supply voltage	24 V DC ±10%
Current consumption	700 mA or less
Discharge method	High-frequency AC method
Discharge output voltage	± 2 kV approx.
Main functions	Error output, Discharge halt input
Indicators	Discharge error (Red), Fan error (Red), Power (Green), Discharge (Green)
Ozone generation	0.04 ppm or less (Note): Typical value at 200 mm 7.874in from directly in front of air outlet, fan speed MAX, straight louver, with no filter installed.
Ambient temperature	0℃ to +50℃ +32℉ to +122℉ (No dew condensation allowed), Storage : -10℃ to +65℃ +14℉ to +149℉
Ambient humidity	35% RH to 65% RH (No dew condensation allowed), Storage : 35% RH to 65% RH
Grounding method	C (capacitor) grounding
Material	Enclosure : ABS, Louver : ABS, Discharge needle unit : PBT, Discharge needle : Tungsten, Bracket : SPHC
Weight	New weight : 790 g approx.
Accessories	Straight louver : 1 pc. (Note), Angle louver : 1 pc., Caution label : 1 set, Rubber cushion : 1 pc. (Note): The discharge needle unit is loaded on the straight louver before shipment.
Remark	If not specified, the ambient temperature for measurement is +20℃ +68℉.

scroll

Accessories (Option)

	Product number	Part number	Product	Details	Product name
	ER-F12ANT	ER-F12ANT	Discharge needle unit	-	Discharge needle unit
	ER-F12FX5	ER-F12FX5	Air filter	-	Air filter
