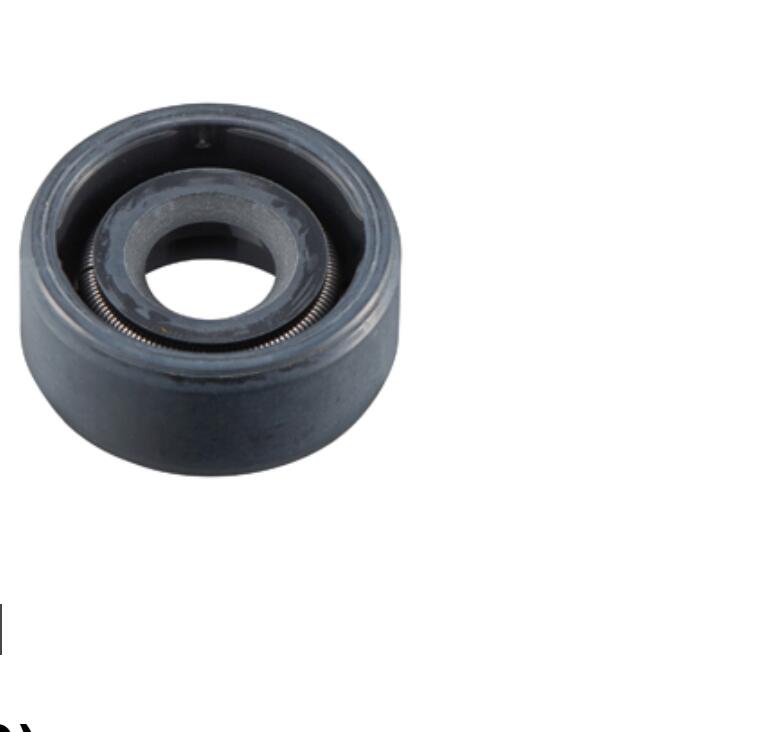

日本NOK密封圈AC2847E0(SC50689)/AC2847F3
发布时间：2025-04-11
日本NOK密封圈AC2847E0(SC50689)/AC2847F3
日本NOK密封圈AC2847E0(SC50689)/AC2847F3
日本NOK密封圈AC2847E0(SC50689)/AC2847F3
日本NOK密封圈AC2847E0(SC50689)/AC2847F3
| Sliding Surface | Axis | Housing Groove | No |
|---|---|---|---|
| Sealing Subject Liquid | Lubricant | Operating Temperature Range(°C) | -30～100 |
| Adhesive Material | Nitrile Rubber | Seal Rim Area Material | Rubber (Has Metal Ring) |
| Shaft Diameter d(Ø) | 50 | Attaching Method | From only the shaft end |
| Two Liquids Separation | No | Environment, Applications | Abrasion Resistant |
| Dust Lip | No | Outer Diameter D(φ) | 68 |
| Width b(mm) | 9 | Pressure Resistance Limit(MPa) | 0.03 |
