日本Ohm欧姆电机形成开关OM-1
日本Ohm欧姆电机形成开关OM-1

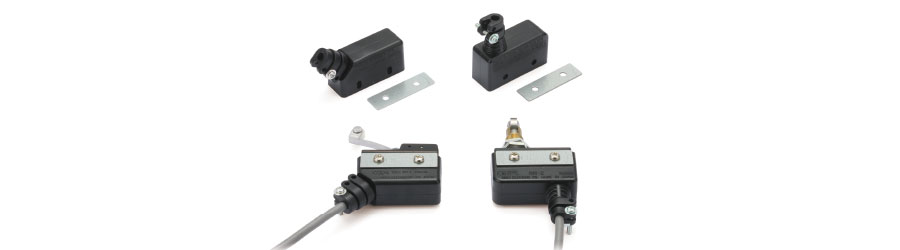

Insulation cover for micro switches MICROCASE
Provides insulation for a micro switch as well as retaining and protecting its cables
Certificates/Approvals
| EU RoHS2 | China RoHS | CE | UL | CSA | PSE |
・Applications Protects micro-switch and related cables
Designed for micro switches with a fitting pitch: P= 25.4 mm (1 inch)
Applicable micro switches
| Manufacturer | Model |
| OMRON | Standard type, A, X、Z types |
| AZBIL | Basic models, BZ, BA/BE series |
| PANASONIC | New A series of basic models (AM1) |
*OHM does not supply micro switch itself.
Model/Specifications
| Model | Micro switch type | Applicable cable diameter | Working emperature | Weight | Q'ty per package | ||
| 1st groove | 2nd groove | 3rd groove | |||||
| OM-1 | 45° type | Ø4 - 5 | Ø5 - 8 | Ø8 - 10 | -25 to +70℃ | 19g | 10 pcs. |
| OM-2 | 90° type | Ø5 - 6 | Ø6 - 9 | - | 21g | 20 pcs. | |
Dimensional drawing
Materials
Instructions
1. Cut the clamp on the MICROCASE to match the required cable diameter.
2. Insert the micro switch to which cable is connected into the MICROCASE.
3. The micro switch is set in MICROCASE.
4. Tighten the screw on the clamp to secure cable.
5. •Fasten the micro case as required using the LS mounting bracket.
・Tightening torque and tensile strength differ depending on the material of cable coating and its hardness.
・Tensile strength drops when outer cable diameter changes due to aging.
Cautions
・Do not paint.
・This product is not waterproof.
・Use and storage under the following conditions should be avoided. Failure to it can lead to deterioration of product quality.
Outside the range of working humidity and temperature
Water vapor contained or high temperature/humidity air
Acidic, alkaline or organic solvent-containing air (See Technical Data "Chemical resistance"）
For any other special environmental conditions, please contact us before use.
