TMP type controller
Rating excitation
The TMP controller includes a transformer, rectifier, fuse, discharge circuit element and torque adjustment resistor, allowing you to easily control the clutch/brake by simply connecting an external AC power source.

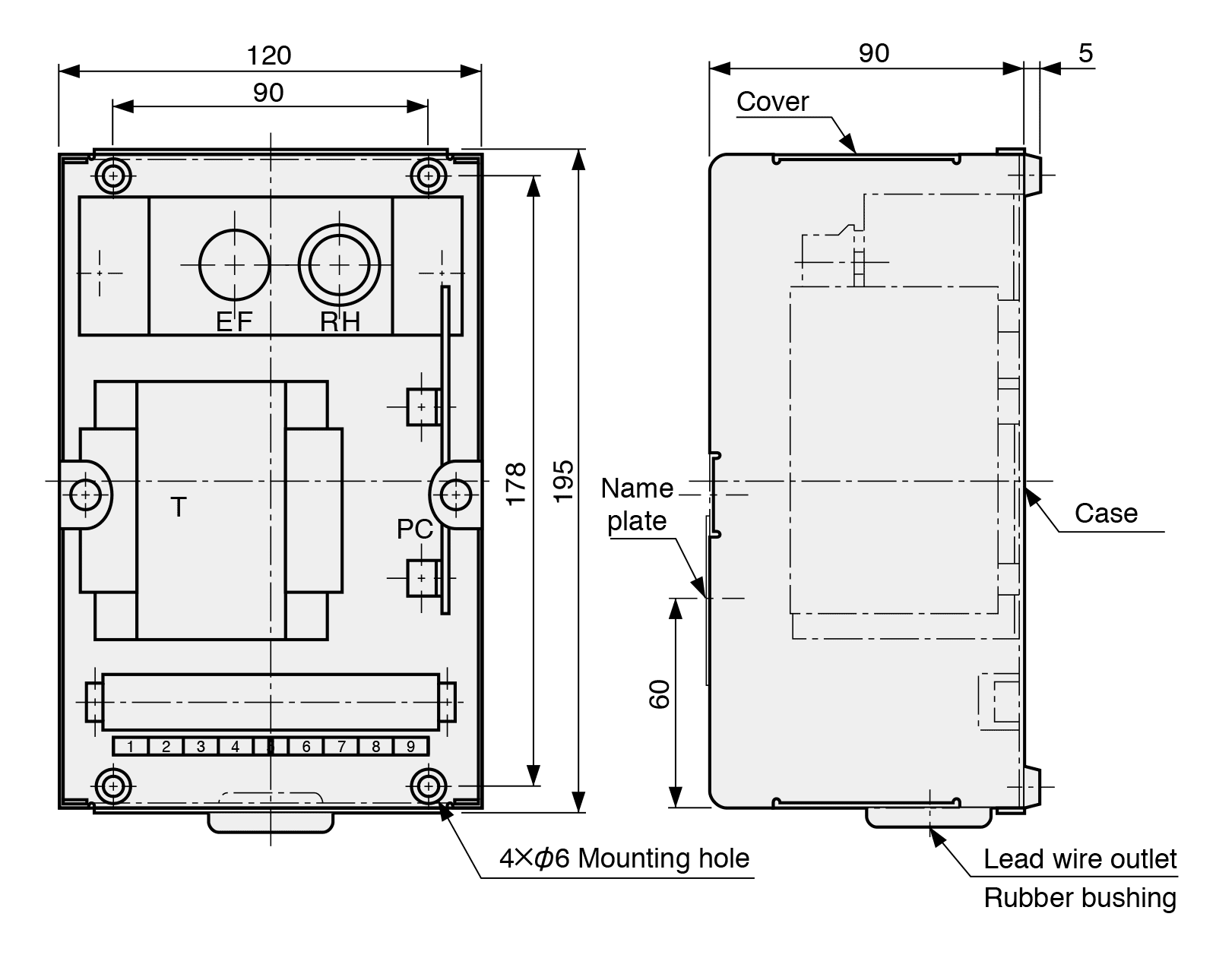

Dimensional outline drawing
T: Transformer EF: Fuse RH: Torque adjustment resistor PC: Printed circuit board
Specifications
| Model | TMP-40D |
|---|---|
| Input voltage AC V | 100/110, 200/220 |
| Output voltage DC V | Clutch side DC.24V, Brake sideDC.12-24V |
| Capacity W | 40 |
| Rating | Continuous |
| Structure | Steel plate, wall mounting, protective enclosure |
| Weight kg | 3.0 |
| Painting color | Munsell 7.5BG6/1.5 |
1. It is not required to connect a varistor as a discharge circuit.
2. In the table, the output voltage at the brake side varies according to the torque adjustment resistor.
3. Depending on the usage load, the adjustment range may narrow.

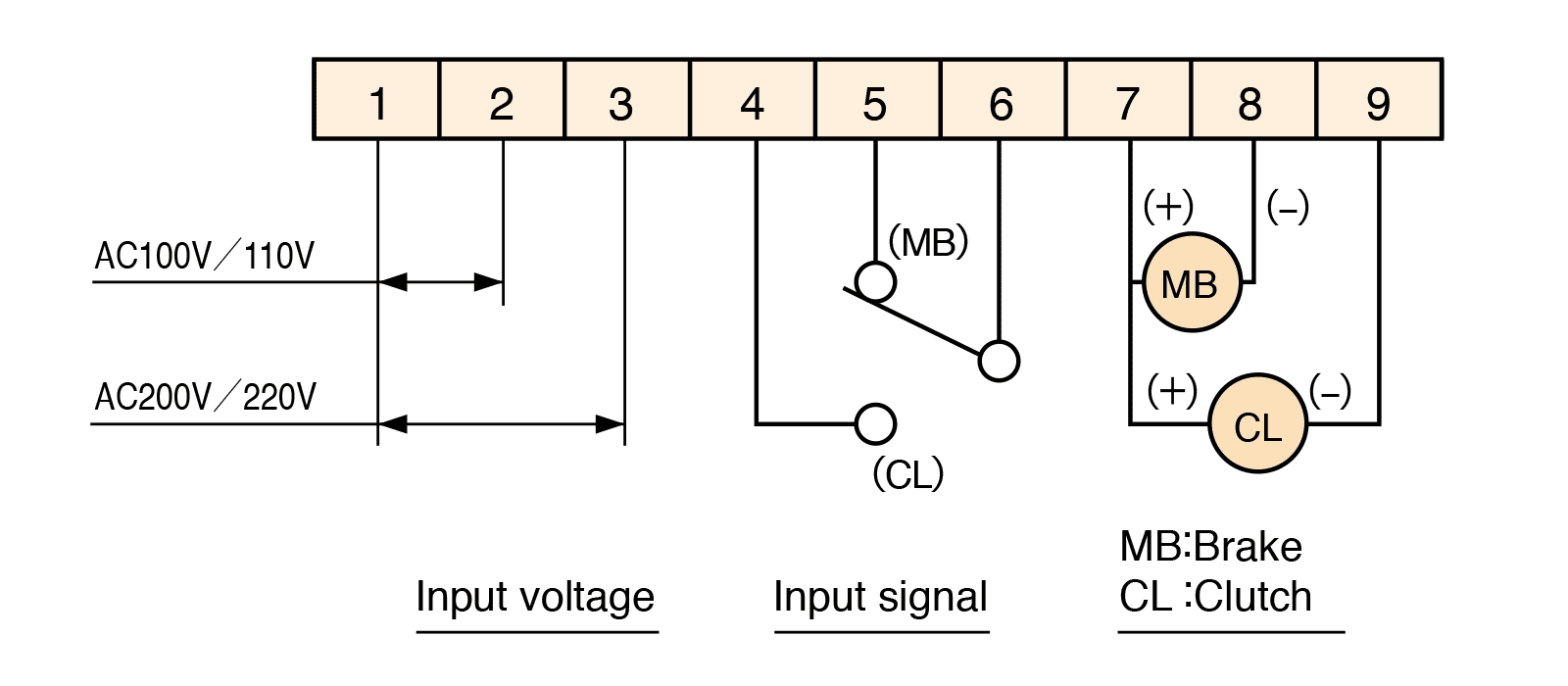

External connection diagram
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
All information is subject to change without notice due to quality improvement or modification.
