日本NACOL阀6H-FP35MP-03-F03/6HN-AV35MP-F03-M32A/AV350-M32
日本NACOL阀6H-FP35MP-03-F03/6HN-AV35MP-F03-M32A
Made in Japan
Manufacturer: Nacol Co., Ltd. (The company name has changed from Japan Accumulator Co., Ltd. as of April 2024.)

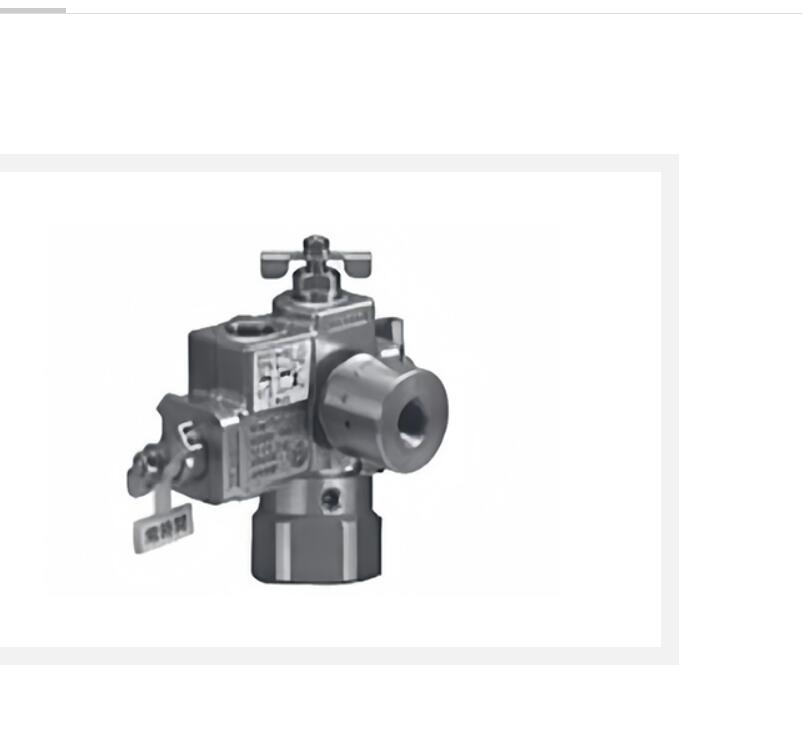

SG valve
Fuse Plug The packing melts at an external temperature of 160±20℃ or more to release the gas in the accumulator to the atmosphere. Spring Loaded Type Safety Valve This valve vents gas from an accumulator to the atmosphere when a predetermined gas pressure has been reached. ※Predetermined pressure should be 1.1 times or more of the circuit pressure and less than maximum allowable working pressure of accumulator or other devices. ※Do not use in locations where excessive vibration occurs. Malfunction may occur due to vibration. Glycerin Filled Pressure Gauge Glycerin filled bourdon tube pressure gauge. SMA Pressure Gauge Digitarl pressure gauge that can output the measured pressure externally.NO. Item Number Sealing Material A B Applicable Bladder Compound. 1 6HN-AV35MP-F03-M32A NBR M32×2 Hex.41 Other than L.NBR 2 6HL-AV35MP-F03-M32A L.NBR M32×2 Hex.41 L.NBR 3 6HN-AV35MP-F03-M42A NBR M42×2 Hex.54 Other than L.NBR 4 6HL-AV35MP-F03-M42A L.NBR M42×2 Hex.54 L.NBR
Safety Device
NO. Item Number 1 6H-FP35MP-03-F03 NO. Item Number Blowout Pressure 1 6H-SV10MP-03-F03 10MPa 2 6H-SV15MP-03-F03 15MPa 3 6H-SV17.5MP-03-F03 17.5MPa 4 6H-SV21MP-03-F03 21MPa 5 6H-SV23MP-03-F03 23MPa 6 6H-SV25MP-03-F03 25MPa 7 6H-SV28MP-03-F04 28MPa 8 6H-SV35MP-03-F03 35MPa
Please exercise caution when performing operation at close to the predetermined pressure.
The Spring at 95 to 105% of a predetermined pressure.Pressure Gauge for SG Valve
NO. Item Number Maximum Scale Reccomended Gauge Range 1 6018DUF02061.6MG 1.6MPa 0.48 – 1.04 MPa 2 6018DUF02062.5MG 2.5MPa 0.75 – 1.63 MPa 3 6018DUF02066MGAG 6MPa 1.8 – 3.9 MPa 4 6018DUF020616MPG 16MPa 4.8 – 10.4 MPa 5 6018DUF020625MPG 25MPa 7.5 – 16.2 MPa 6 6018DUF020640MPG 40MPa 12.0 – 26.0 MPa 7 6018DUF020660MPG 60MPa 18.0 – 39.0 MPa NO. Item Number Out put Receiver 1 6018KDF02Z135MP0 Wireless Attached 2 6018KDF02Z035MP0 Wireless – 3 6018KDF02V035MP0 Wired –
