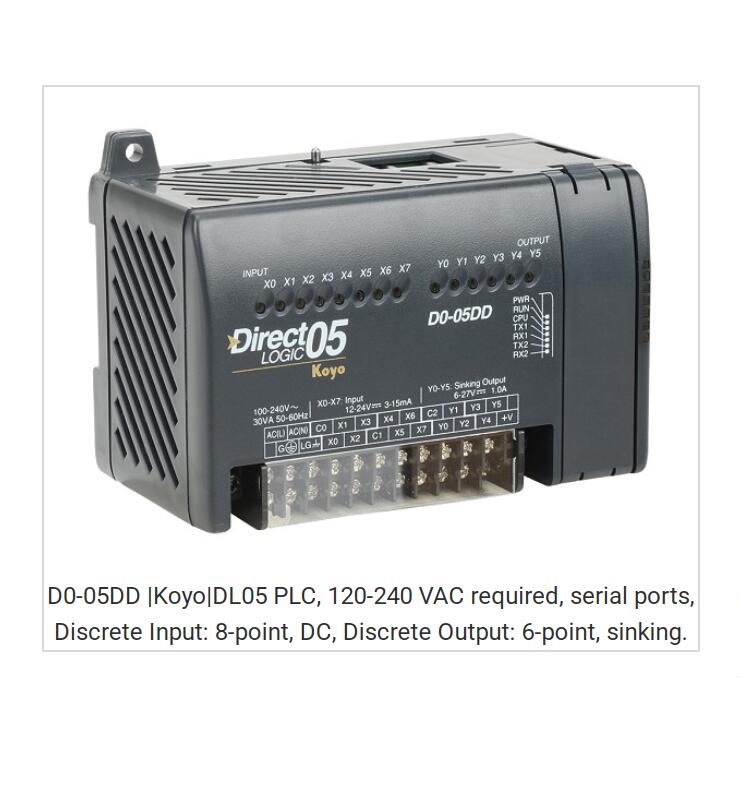

日本KOYO光洋电子模块D0-05DD/F0-04AD-1/D0-06DR-D
日本KOYO光洋电子模块D0-05DD/F0-04AD-1/D0-06DR-D
Manufacturer : Koyo
Inputs : 8 DC inputs, 12-24 VDC PNP/NPN (current sinking/sourcing), 2 isolated commons First 3 inputs are configurable in one of several high-speed I/O features such as 5KHz counter input, pulse catch input, or interrupt input (not available when using pulse output)
Outputs : 6 DC outputs, 6-27 VDC NPN (current sinking), 1.0A/pt. max., 1 common 2 Outputs are configurable for independent CW/CCW pulse train output or step and direction pulse output up to 7KHz (0.5A/pt.) (not available when using high-speed inputs)
Memory : 6K words* total memory (2048 words program (Flash), 4096 words data) User data is retained by built-in super-capacitor for up to 3 weeks
Programming language : Ladder Logic and SFC (Sequential Flowchart) programming
Communications : 2 built-in RS232C communication ports Secondary communications port supports DirectNET Master/Slave, MODBUS RTU Master/Slave, and ASCII In/Out
Expansion : 1 slot for I/O or specialty module
Supply voltage: 95~240 VAC
Weight : 1 Kg
