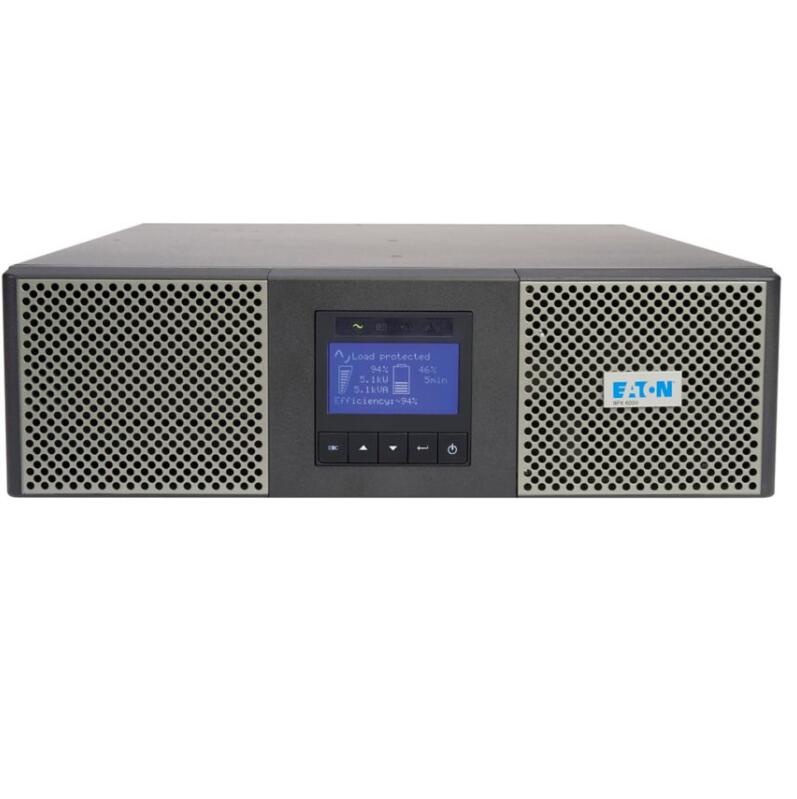

伊顿UPS电源9PX5KIRTG2 议价
常用规格
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX5K |
| UPC | 743172039231 |
| Product Length/Depth | 28.4 in |
| Product Height | 5.1 in |
| Product Width | 17.3 in |
| Product Weight | 106 lb |
| Compliances | CE Marked |
| Certifications | cULus Listed |
产品规格
| Special features | Gigabit Network Card (NETWORK-M3) included |
| Topology | Online/Double-conversion |
| Form factor | Rack/tower |
| Rack size | 3U |
| Color | Black/silver |
| VA rating | 5000 VA |
| Wattage | 4500 W |
| Rack mounting kit | Yes |
| Package contents |
|
| Internal bypass | Yes |
| Input connection | L6-30P |
| Input cord length | 6 ft |
| Input nominal voltage | 208V default (200/208/220/230/240V) |
| Input frequency range | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz |
| Input power factor | >0.99 typical |
| Receptacle | (2) L6-20R, (2) L6-30R, Hardwired |
| Number of Outputs L14-30R | 1 |
| Number of Outputs L6-20R | 2 |
| Number of Outputs L6-30R | 2 |
| Number of outputs hardwired | 1 |
| Output waveform | True sine wave |
| Voltage | 208 V |
| Output nominal voltage | 208V default (200/208/220/230/240/250V) |
| Runtime graph | |
| Battery management | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery type | Sealed, lead-acid |
| Extended battery capability | Add up to 4 extended battery modules (EBM). Part number 9PXEBM180RT |
| Standard factory warranty |
|
| Extended service plans |
|
| Communication | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
| Expansion slots | (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M3) included |
| Ethernet interface | Yes |
| Includes network card | Yes |
| Software compatibility | Intelligent Power Software Suite |
| User interface | Graphical display, 5-button programmable menu |
| Altitude | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) |
| BTU Rating | Online: 1150, Battery: 1560 |
| Noise level | <45 dB at 1 meter |
| Relative humidity | 0-95% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Protocol | SNMP |
| Efficiency at max. load | 93% |
| Max number of battery packs | 4 |
| Output frequency | 50/60 Hz |
| Output power factor | 0.9 |
| Output voltage range | ±1% steady-state |
| Runtime at full load | 3 min |
