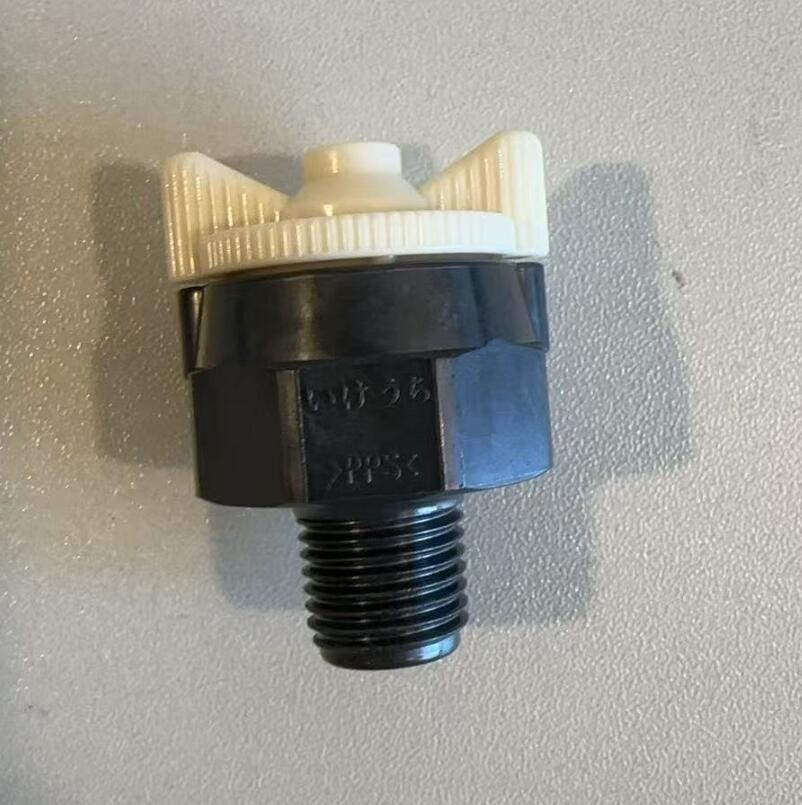

日本IKEUCHI池内喷嘴1/4M INJJX 015 PP(FEPM)+PPS
日本IKEUCHI池内喷嘴1/4M INJJX 015 PP(FEPM)+PPS

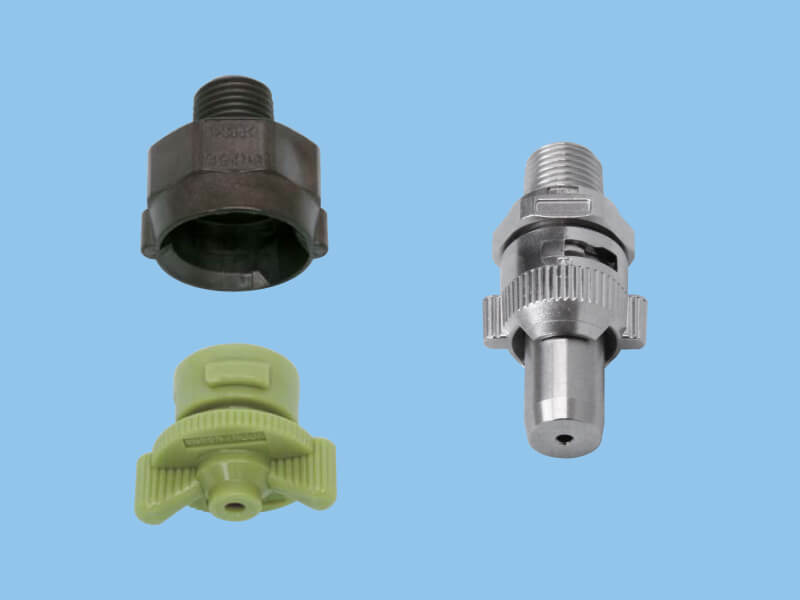

Full cone spray/ Quick-detachable INJJX/INJJX-SS series nozzles
| Pipe conn. size | INJJX: R1/8, R1/4, R3/8, INJJX-SS: 1/4M | Spray angle | INJJX: 65ﾟ, 70ﾟ, or 75ﾟ, INJJX-SS: 55–75ﾟ | Mean droplet diameter | 290–520 μm |
|---|---|---|---|---|---|
| Strainer | Not included | Standard pressure | 0.2 MPa | Spray capacity | 1.00–6.00 ℓ/min |
| Air consumption | - | Free passage diameter | 0.8–2.0 mm |
Features

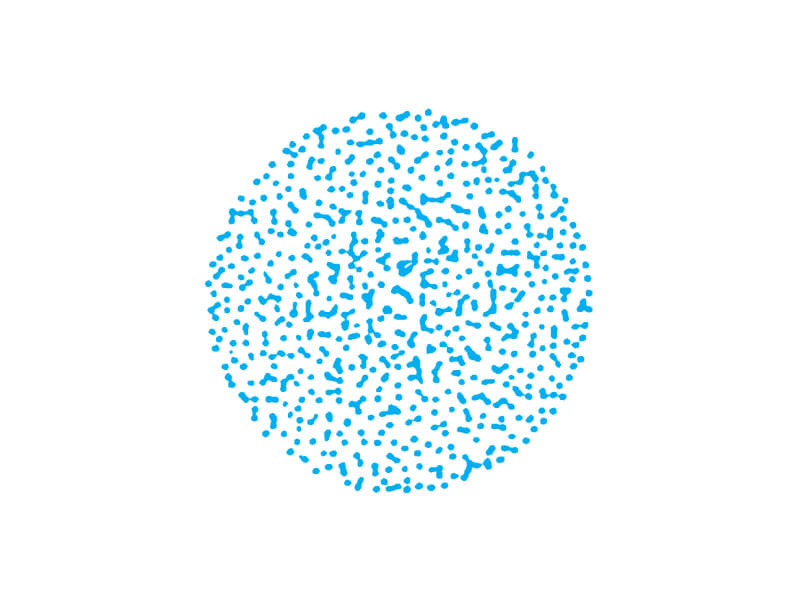

• Full cone spray pattern with a round impact area and uniform distribution.
• Quick-detachable design helps to significantly reduce maintenance time. Whirler inside a nozzle is removable.
• Easy mounting/dismounting with a knurled tab.
• No falling off of tip or packing when removing the nozzle part.
[INJJX series (plastic)]
• Made of high chemical and heat resistant PP (polypropylene).

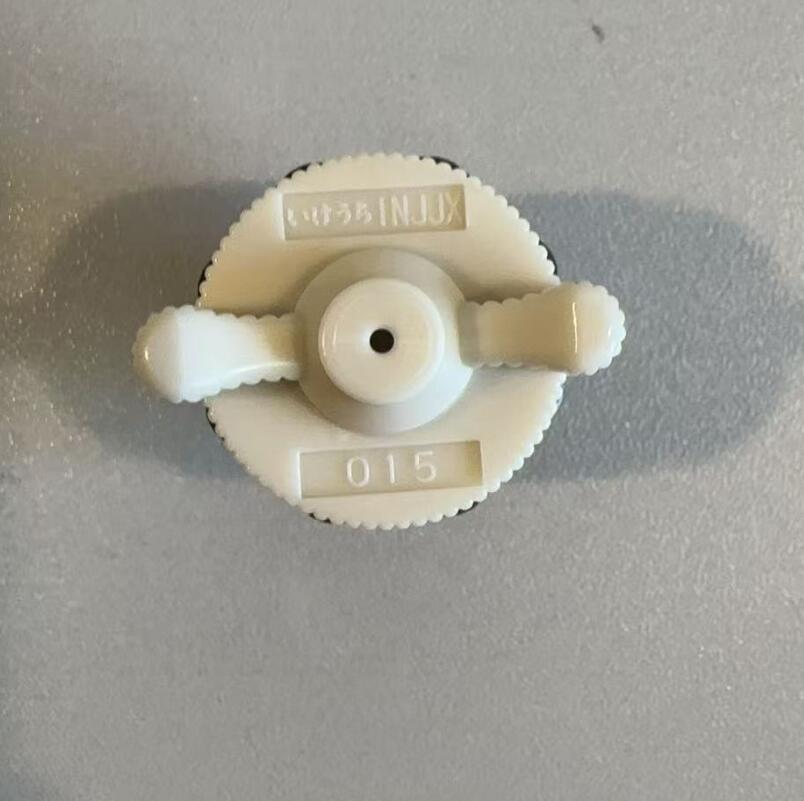

• Nozzle tips are color-coded by spray capacity for easy identification.
[INJJX-SS series (metal)]
• Made of stainless steel which provides high heat resistance and durability.

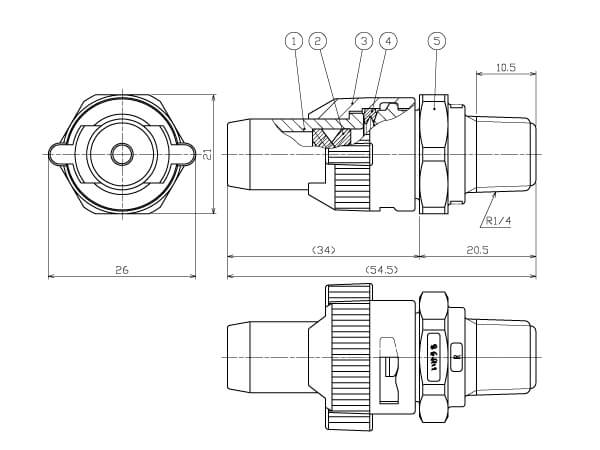

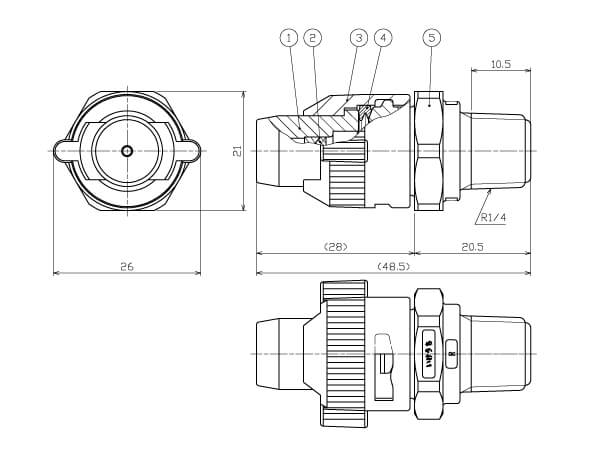

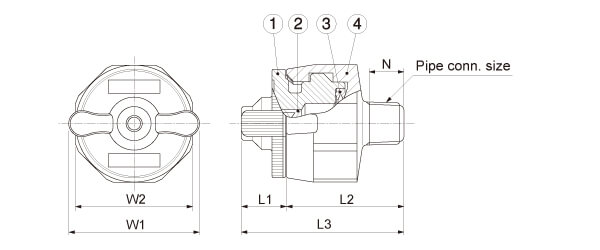

[INJJX series (plastic)] • Machinery [INJJX series (plastic)] Pipe conn. sizeMass (g)w/PP adaptorw/ PPS adaptorR1/89.212R1/49.613R3/810.514 [INJJX-SS series (metal)] Pipe conn. sizeMass (g）R1/462 No.Components①Nozzle tip②Whirler③Packing④Adaptor Pipe conn. sizeOuter dimensions（mm）L1L2L3W1W2NR1/810273730278R1/4103040302711.5R3/8103040302712 [Note] • Spray capacity code: 010–030 No.Components①Nozzle tip②Whirler③Cap④Pacing⑤Adaptor [Note] • Spray capacity code: 040–060 No.Components①Nozzle tip②Whirler③Cap④Pacing⑤Adaptor [Note]Applications
• Cleaning
• Etching
• Stripping
• For the applications where precise spray alignment and/or periodic maintenance is required
[INJJX-SS series (metal)]
• Cleaning: Machinery, eliminators, screen, tanks, parts, crushed stones, earth and sand, PCB, steel plates and pieces
• Cooling: Tanks, roofs
• Spraying: Wastewater treatment, aeration, foam breaking, dust suppression, chemical treatment
• For the applications where precise spray alignment and/or periodic maintenance is requiredIndustries in which this nozzle is used
• Electronics
• Steelmaking
• Pollution control
• FoodProduct specifications
Structure [INJJX series (plastic)]
• Two-piece structure comprising a nozzle (nozzle tip + whirler + packing) and adaptor.
• Easy installation and removal of a nozzle just by just turning 60ﾟ.
[INJJX-SS series (metal)]
• Two-piece structure comprising a nozzle (nozzle tip + whirler + cap + packing) and adaptor.
• Easy installation and removal of a nozzle just by turning 90ﾟ.Material [INJJX series (plastic)]
• Nozzle tip & Whirler: PP (polypropylene)
• Adaptor: PP or PPS (polypropylene sulfide)
• Packing: FEPM
[INJJX-SS series (metal)]
• Nozzle tip: Stainless steel 303
• Whirler: Stainless steel 316L equivalent
• Cap: Stainless steel 316L equivalent
• Adaptor: Stainless steel 316L equivalent
• Packing: FEPMMass Outer dimensions Plastic type INJJX series
• In our material code, "S" represents "stainless steel". (Example) S316 represents stainlees steel 316.
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.Metal type INJJX-SS series
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
