The UT35A and UT32A temperature controllers employ an easy-to-read, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT35A/UT32A also support open networks such as Ethernet communication.

UT35A and UT32A Temperature Controller Features

4 target setpoints (PID numbers) available as standard
3 alarm independent common terminals available as standard
Ladder sequence programs can be built
Simple operation
Up to 8 DOs (combinations available)
Multiple language operation manual (Japanese, English, German, French, Spanish, Chinese and Korean) available. Please specify the desired language when ordering.
Detailed code model available to customize specifications best suited to you.

Advanced Control

Control Modes

The control mode allows easily configuring settings and making changes with parameters.

Single-loop control

5 Built-in Control Types

PID control
ON/OFF control (1 point of hysteresis)
ON/OFF control (2 points of hysteresis)
Two-position, two-level control
Heating/cooling control

Heating/cooling control

For the correspondence between the above control mode and control types for each model, please refer to the specifications.

Ladder Sequence Control

With built-in ladder sequence control, the range of applications are dramatically increased. This feature is standard in all the UTAdvanced controllers (except UM33A). The ladder sequence control function can replace a small PLC required by the application. Sequence control and PID control can be performed simultaneously.

Monitoring and control of external machinery
E.g.: Lamps, switches, timers
Solve digital input/output logic functionality easily.
Number of basic command types: 13
Number of application command types: 73

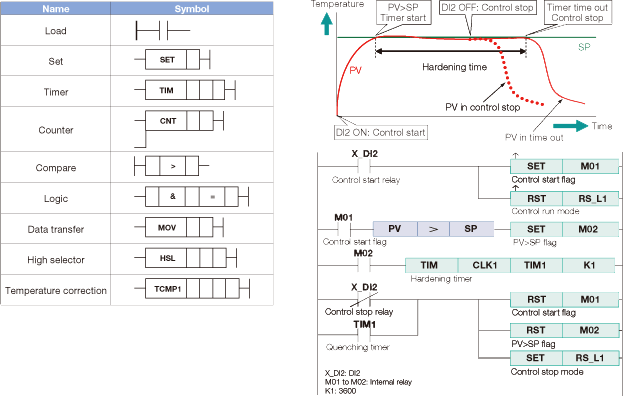

[Example of ladder instruction]	[Example of ladder programming]
