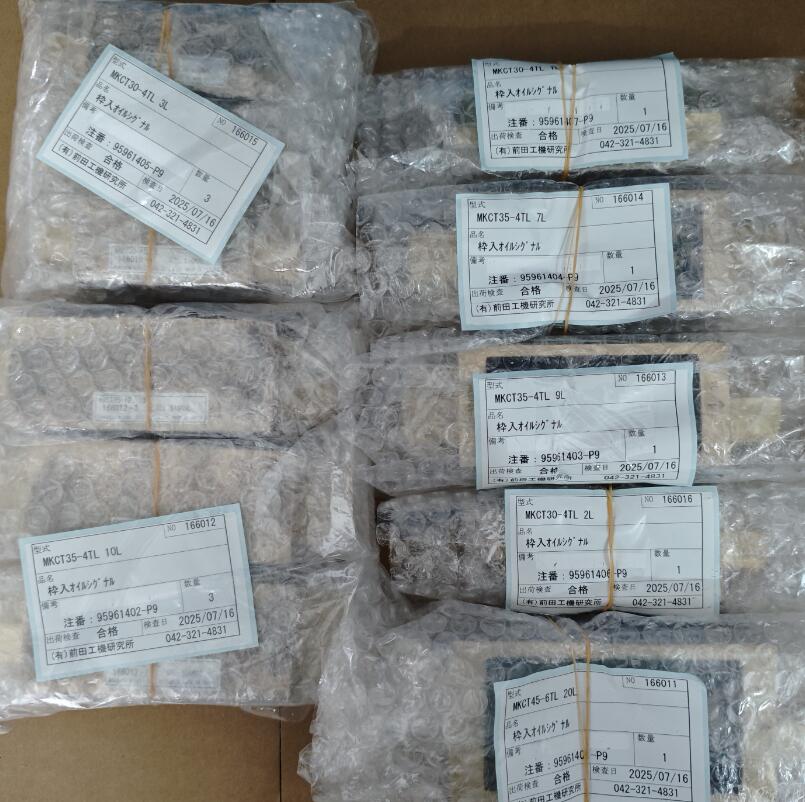

日本MAEDA前田工机流量计MKCT45-6TL 20L/MKCT35-4TL 10L/7L/9L

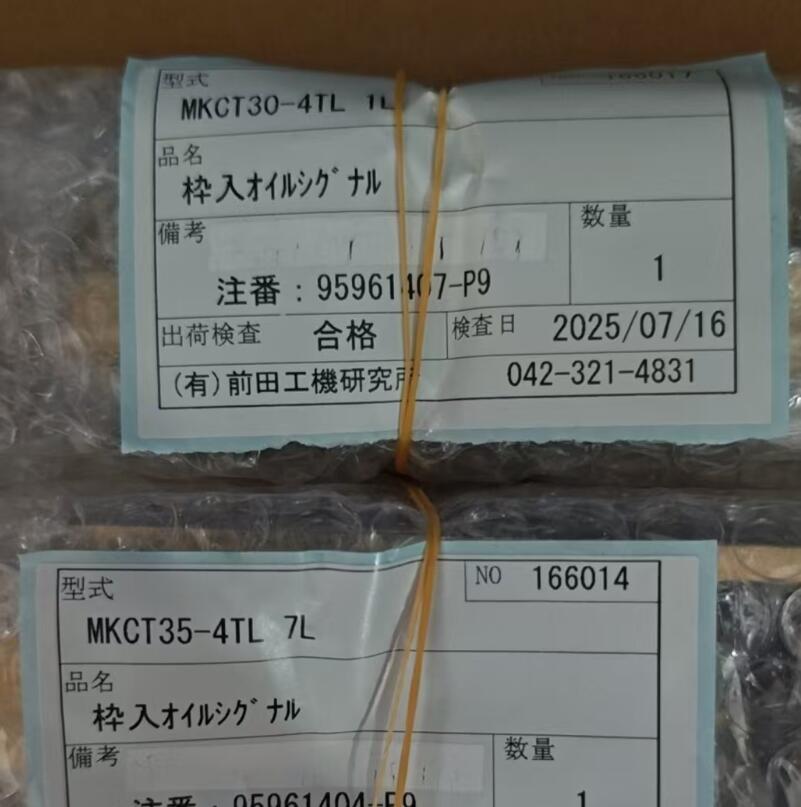

日本MAEDA前田工机MKCT30-4TL 3L/1L/2L
Maeda Koki MKCT Type Oil Signal
Made in Japan
Manufacturer: Maeda Machinery Research Institute Ltd.
Model: MKCT Type
Features
A transparent tapered tube is used, so the flow rate can be checked by looking at the relative position of the ball (or float) and the
red line .
can be freely changed, such as upward, downward, or sideways.
Model list

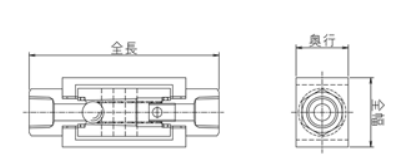

Model | Dimensions (mm) [ The overall width is the casting surface, so there may be individual differences in dimensions] | Maximum flow rate | ||||
connection | full length | Overall width | Depth | |||
Screw | MKCT20-1TL | Rc1/8 | 80 | 30 | twenty two | Five |
MKCT20-2TL | Rc1/4 | 80 | 30 | twenty two | Five | |
MKCT20-3TL | Rc3/8 | 86 | 30 | twenty two | Five | |
MKCT30-2TL | Rc1/4 | 100 | 44 | 32 | Ten | |
MKCT30-3TL | Rc3/8 | 104 | 44 | 32 | Ten | |
MKCT30-4TL | Rc1/2 | 110 | 44 | 32 | Ten | |
MKCT35-4TL | Rc1/2 | 148 | 50 | 44 | twenty five | |
MKCT35-6TL | Rc3/4 | 148 | 50 | 44 | twenty five | |
MKCT45-6TL | Rc3/4 | 171 | 62 | 50 | 50 | |
MKCT45-8TL | Rc1 | 171 | 62 | 50 | 50 | |

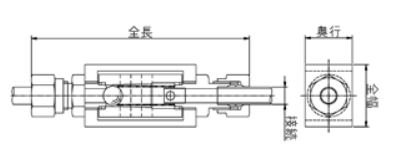

For copper | MKCT20-4 | φ4 | 98 | 30 | twenty two | 1.5 |
MKCT20-6 | φ6 | 100 | 30 | twenty two | Four | |
MKCT20-8 | φ8 | 102 | 30 | twenty two | Five | |
MKCT20-10 | φ10 | 107 | 30 | twenty two | Five | |
MKCT30-10 | φ10 | 126 | 44 | 32 | Ten | |
MKCT30-12 | φ12 | 126 | 44 | 32 | Ten | |
MKCT30-14 | φ14 | 135 | 44 | 32 | Ten |
Standard specifications (screw-in type)
fluid | oil | ||
connection | Rc female thread | Change to R male thread. | |
Heatproof temperature | Maximum 80℃ | – | |
Pressure resistance | 1MPa | – | |
Material | Transparent Tapered Tube | acrylic | – |
Fittings | C3604 (Brass) | SUS products are also available. | |
Protective cover | B.C. | Aluminum versions are also available. | |
spring | SUS304 | – | |
Nylon ball | Nylon 66 | In some cases, cylindrical floats are used. | |
O-ring | Nitrile Rubber | – | |
Standard specifications (for copper pipes)
fluid | oil | ||
connection | See above | – | |
Heatproof temperature | Maximum 80℃ | – | |
Pressure resistance | 1MPa | – | |
Material | Transparent Tapered Tube | acrylic | – |
Fittings | C3604 (Brass) | – | |
Cap nut | C3604 (Brass) | – | |
Zipper Sleeve | Cu | – | |
Protective cover | B.C. | Aluminum versions are also available. | |
spring | SUS304 | – | |
Nylon ball | Nylon 66 | In some cases, cylindrical floats are used. | |
O-ring | Nitrile Rubber | – | |
