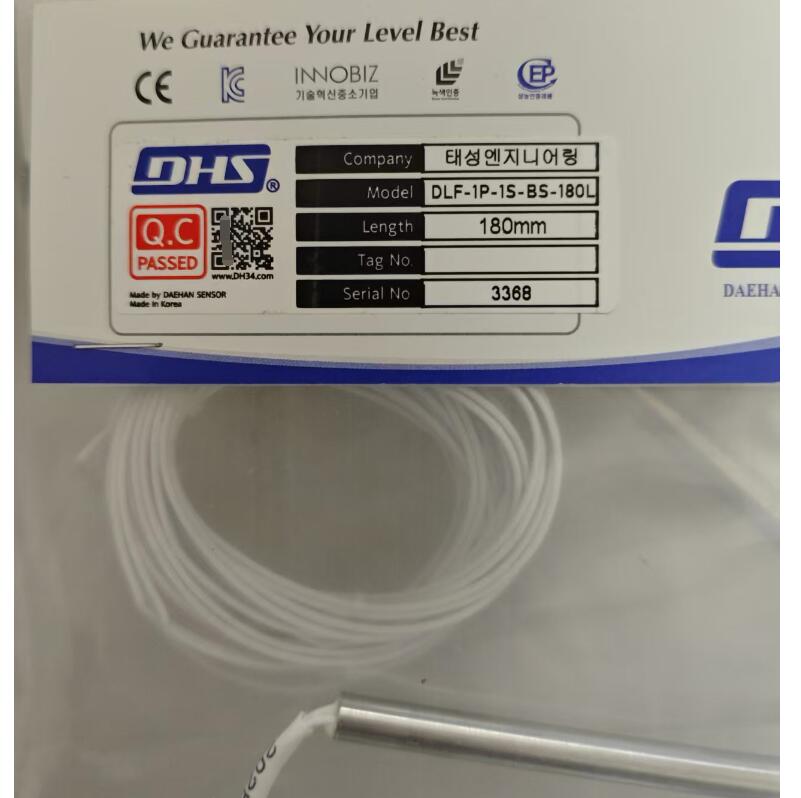

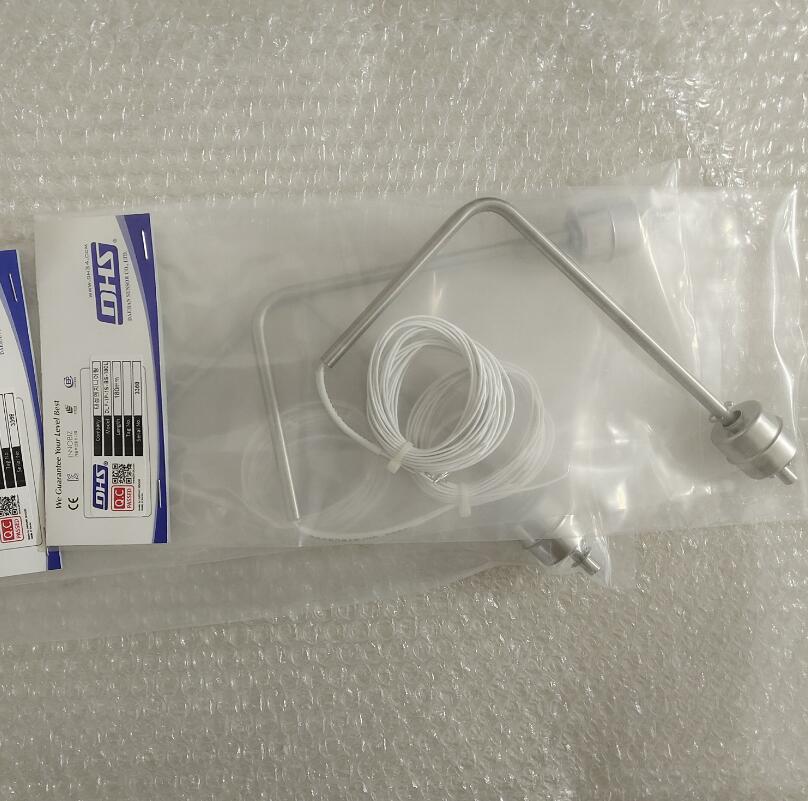

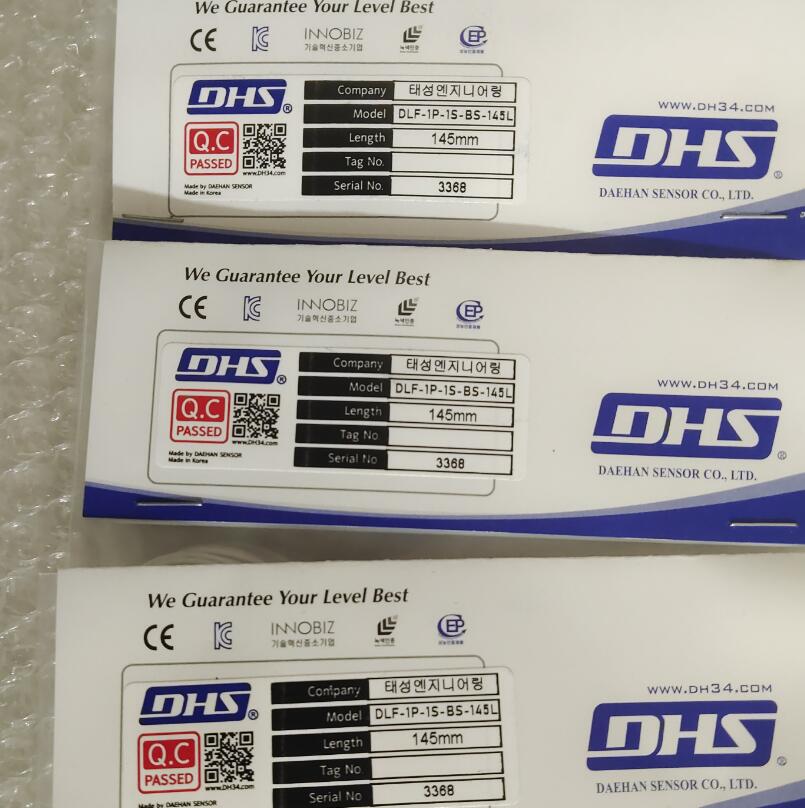

韩国DHS液位传感器DHS-DLF-1P-1S-BS-180L/DLF-1P-1S-BS-145L

DLF - S_Series

Manual Drawing

Related images and installation examples

Quote ContactThis product FAQ

Operating Principle

 DLF - S_Series are mini-float level switches for controlling small size tanks.
 A reed switch(es) in the sensor operates as the float(s), which bears a permanent magnet inside, moves up and down.
 DLF - S_Series are level switches to provide external relays with on/off signal.

Features & Applications

This mini sensors are for indicating liquid level and high level alarming to control.
Usually used in semiconductor manufacturing process, medical equipment, chemicals, and fuel tanks.
Cost-effective, simple to set-up, very dependable and durable.
In case of using with AC power source, installing a protection circuit (DLF-SUG) is essentially required.
100% order base custom production item to adapt to each different tanks. (No stock)

Please refer to below ordering codes.
We recommend that the sensor's length be within Max. 1 meter.

The contact points' qn'ty is NOT always the same as the floats qn'ty. Thus, do NOT forget to advise all each numbers in front of both the first "P" and the second "S".

Keyword

DLF-1p-1sDLF-2p-2sdlf-3p-3sdlf-4p-4sDLF1p1sdlf2p2sdlf3p3sdlf4p4sSmall float switchsmall floatsmall float sensorsmall float level sensorsmall level switchfloat level switch

General Specification

• Sensing Principle

• Buoyancy & Magnetism

• Type of Medium

• Liquid

• Voltage Supply

• None power

• Output

• SPST, SPDT

• Operating Temperature

• Max. 100℃

• Operating Pressure

• Max. 10Kgf/㎠

• Measuring Range

• 1~4 Level Point(s)

Other Specification
