日本本山MOTOYAMA调节阀MR2000-NSS
发布时间：2025-10-22
日本本山MOTOYAMA调节阀MR2000-NSS

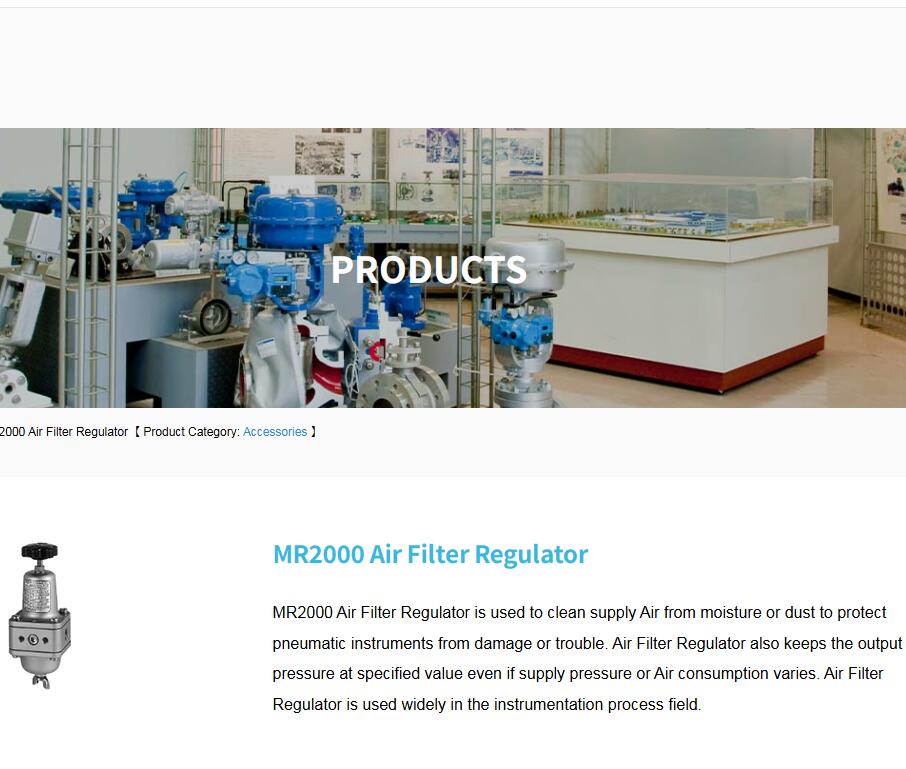

MR2000 Air Filter Regulator
MR2000 Air Filter Regulator is used to clean supply Air from moisture or dust to protect pneumatic instruments from damage or trouble. Air Filter Regulator also keeps the output pressure at specified value even if supply pressure or Air consumption varies. Air Filter Regulator is used widely in the instrumentation process field.
| Supply Air Pressure | Max. 980kPaG (10kgf/cm²G) |
|---|---|
| Output Flow Rate | ≧400ℓ/min Nor {SUP700kPaG (7kgf/cm²G) } |
| Air Consumption | ≦0.5ℓ/min Nor {OUT140kPaG (1.4kgf/cm²G) } |
| Ambient Temperature | -30°C to +80°C |
| Set-pressure | 20 to 500kPaG (0.2 to 5.0kgf/cm²G) |
| Filtering Accuracy | 3μm |
| Connection | Rc 1/4 (Pressure gauge connection Rc1/8) |
| Weight | 360g |
| Body Material | ADC12 (Aluminum alloy) |
