Information

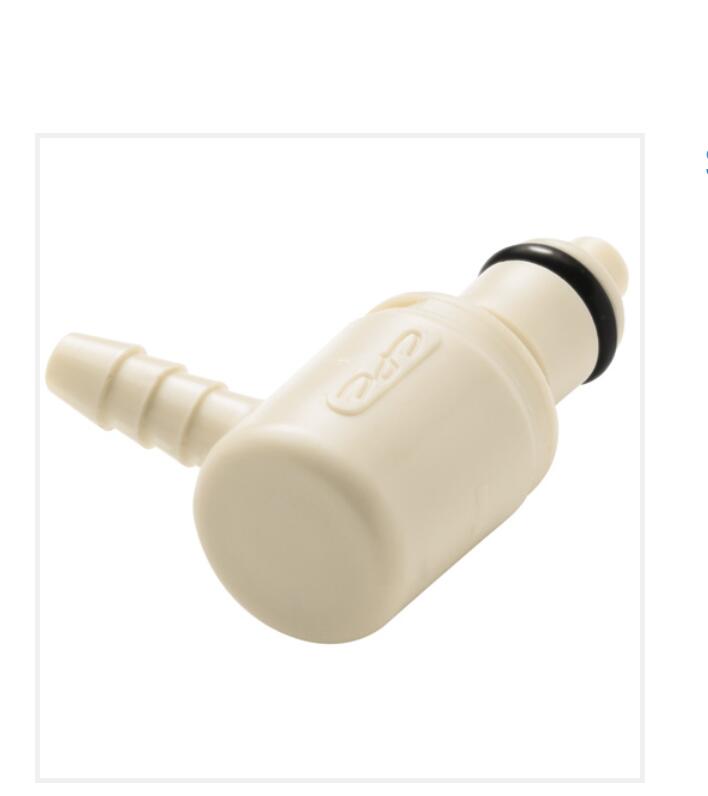

CPC - PMC230212 / PMCD230212 | Elbow Coupling Insert | Polypropylene | Hose barb 3,2 mm (1/8")

A Coupling Insert of CPC from the PMC12 series with a 3,2 mm hose barb. This Elbowinsert 90º (male) ensures a leak-free seal, partly provided by a EPDM sealing ring and is made of POLYPROPYLENE. This coupling is available with valve (PMCD230212) and without valve (PMC230212). (Choose at the top right at "Make a choice:")

Properties of the coupling from the PMC12 series:

• Polypropylen

• EPDM O-ring

• Compatible

• Click when connected

• Great chemical resistance and gamma sterilizable

• No leakage

• Shorter assemblies, faster installation

• Also mates with PMC and MC series couplings

• Assurance of a reliable connection

Applications:

• Microbiological examination equipment

• Cleaning concentrates

• Electroplating fluids

• Sterilization equipment

• Analysis of water pollutants

General information about the PMC12 series:

PMC12 Series Couplings have 1/8" flow and are used in a variety of general purpose applications. These quick disconnect couplings offer many of the same configuration options as acetal PMC couplings but the polypropylene material adds greater chemical resistance for more demanding applications. PMC12 couplings are also gamma sterilizable. The CPC Thumb Latch makes the PMC12 easier to use than designs with ball and sleeve connectors. Connect and disconnect with one hand and integral terminations make the PMC12 the choice for ease of use and manufacture.

These couplings offer the flexibility of multiple configurations and terminations and mate with PMC-serie,  MC-metal series and PMC12-serie polypropylene couplings. For more technical information, see the PDF.

• Material: Polypropylene, thumb latch is stainless steel

• Available in various sizes: from 1.6 mm to 6.4 mm ID, also at an angle of 90º

• Available with clamping ring coupling, hose tail or male or female thread

• With and without valve, Valve spring made of stainless steel 316 (W5)

• Available with panel mounting option

• O-rings: EPDM

• Vacuum up to 8.3 bar (120 PSI)

• Temperature range: 0ºC to 71ºC constant

•
