日本KOWA兴和工业镜头LM12JC10M LM50JCM-V LM35JCM-V
发布时间：2025-11-10

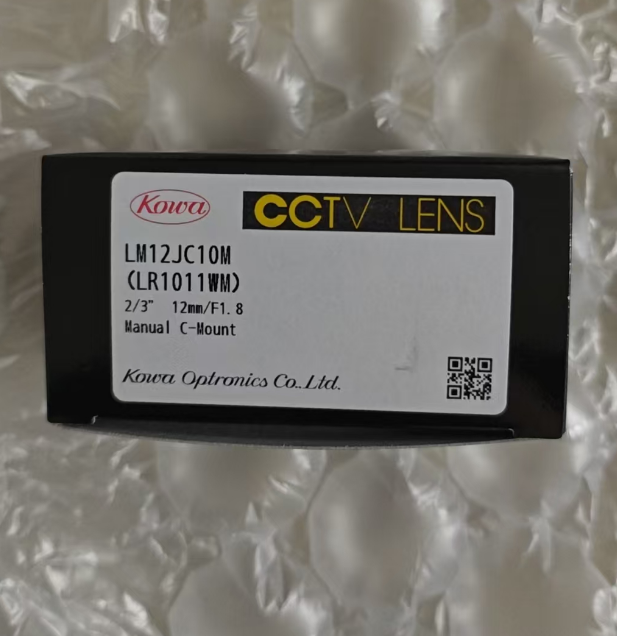

日本KOWA兴和工业镜头LM12JC10M LM50JCM-V LM35JCM-V
Description
2/3" 10 Megapixel C-mount Industrial Lens
Focal length 12mm
For sensors with a pixel size from 2.5μm
Suitable for Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more
Floating mechanism to eliminate optical aberrations
Broadband Coating: Transmission from VIS to NIR
Techn. Details
| Aperture (F-stop): | 1,8 - 11 |
|---|---|
| Aperture (control): | Manual |
| Application field: | Broadcast, Machine Vision |
| Back focus in air (mm): | 13,9 |
| Control (focus): | Manual |
| Field of view at minimum working distance, horizontal (mm): | 80,7 |
| Field of view at minimum working distance, vertical (mm): | 60,2 |
| Filter size (mm): | M25,5 x P0,5 |
| Focal length (mm): | 12 |
| Focus range (m): | 0,1 - ∞ |
| Megapixel: | 10 |
| Mount: | C-mount |
| Pixel size (µm): | 2,5 |
| Resolution, centre (lp/mm): | 200 |
| Resolution, margin (lp/mm): | 160 |
| Sensor size: | 2/3" |
| Series: | JC10M |
| Size (mm): | Ø33 x 53,5 |
| TV distortion (%): | -0,12 |
| Temperature range (℃): | -10°C - +50°C |
| Type of lens: | Fixed Focal Lens |
| Wavelength range: | Broad Band Coating (400nm – 1000nm) |
| Weight (g): | 105 |
