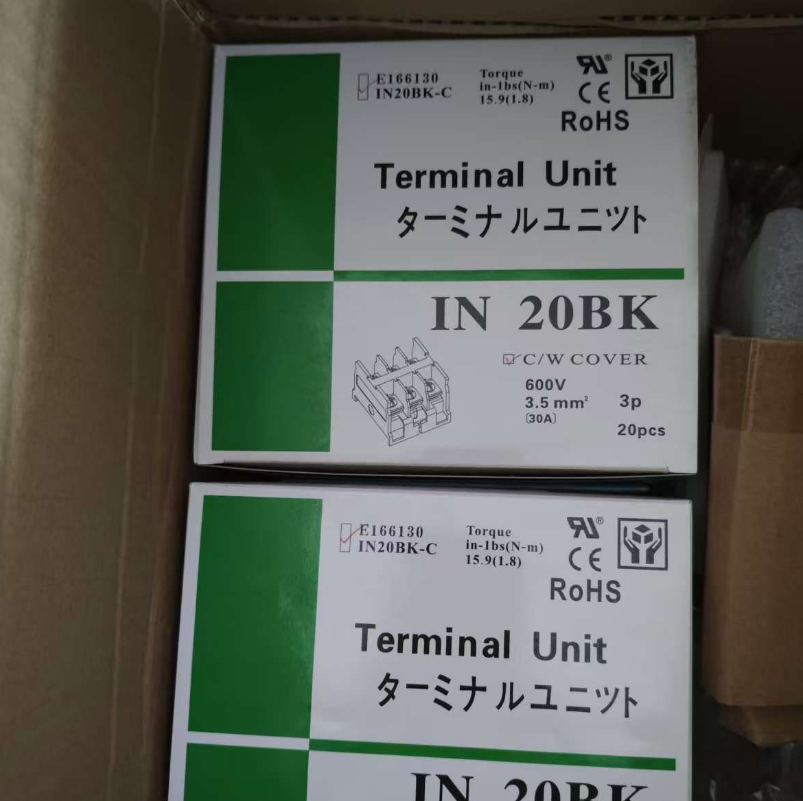

马可MACK端子IN20BK-C IN12BK-C IN400K
发布时间：2026-01-24
马可MACK端子IN20BK-C IN12BK-C IN400K
马可MACK端子IN20BK-C IN12BK-C IN400K
| 名 稱 | 額 定 絕緣電壓 | 額 定 絕緣電流 | 耐 電 壓 | 絕 緣 抵 抗 | 適 合 電 線 | 極 數 | 尺寸(LxWxH) mm |
| IN12BK-C | 600V | 20A | 2500V 1MIN | 100MΩ MIN | 2MM² MAX | 2Poles | 40x20x32 |
| IN13SBK-C | 600V | 20A | 2500V 1MIN | 100MΩ MIN | 2MM² MAX | 3Poles | 40x20x32 |
| IN13SBK-C | 600V | 20A | 2500V 1MIN | 100MΩ MIN | 2MM² MAX | 4Poles | 40x33.5x32 |
| IN20BK-C | 600V | 30A | 2500V 1MIN | 100MΩ MIN | 3.5MM² MAX | 3Poles | 40x35x32 |
| IN20BK-C | 600V | 30A | 2500V 1MIN | 100MΩ MIN | 3.5MM² MAX | 4Poles | 47x40x32 |
| IN30BK-C | 600V | 50A | 2500V 1MIN | 100MΩ MIN | 8MM² MAX | 3Poles | 45x43x36 |
| IN411SB-C | 600V | 60A | 2500V 1MIN | 100MΩ MIN | 14MM² MAX | 1Poles | 45x15.5x36 |
| IN60BK-C | 600V | 90A | 2500V 1MIN | 100MΩ MIN | 22MM² MAX | 1Poles | 56x22x40 |
| IN100K-C | 600V | 130A | 2500V 1MIN | 100MΩ MIN | 38MM² MAX | 1Poles | 75x32x47.5 |
| IN200K-C | 600V | 240A | 2500V 1MIN | 100MΩ MIN | 100MM² MAX | 1Poles | 86x39x59.5 |
| IN400K-C | 600V | 370A | 2500V 1MIN | 100MΩ MIN | 200MM² MAX | 1Poles | 125x62x76.5 |
| 名 稱 | 額 定 絕緣電壓 | 額 定 絕緣電流 | 耐 電 壓 | 絕 緣 抵 抗 | 適 合 電 線 | 極 數 | 尺寸(LxWxH) mm |
| IN13SBK-C-3P-GD | 600V | 20A | 2500V 1MIN | 100MΩ MIN | 2MM² MAX | 3Poles | 41.5x37x24 |
| IN13SBK-C-4P-GD | 600V | 20A | 2500V 1MIN | 100MΩ MIN | 2MM² MAX | 4Poles | 49.6x37x24 |
| IN20BK-C-3P-GD | 600V | 30A | 2500V 1MIN | 100MΩ MIN | 3.5MM² MAX | 3Poles | 51.5x37x26.6 |
| IN20BK-C-4P-GD | 600V | 30A | 2500V 1MIN | 100MΩ MIN | 3.5MM² MAX | 4Poles | 62.8x37x26.6 |
| IN411S-C-3P-GD | 600V | 60A | 2500V 1MIN | 100MΩ MIN | 14MM² MAX | 3Poles | 78.6x48.2x32.5 |
| IN411S-C-4P-GD | 600V | 60A | 2500V 1MIN | 100MΩ MIN | 14MM² MAX | 4Poles | 94.6x48.2x32.5 |
| IN60BK-C-3P-GD | 600V | 90A | 2500V 1MIN | 100MΩ MIN | 22MM² MAX | 3Poles | 94x55.5x36.2 |
| IN60BK-C-4P-GD | 600V | 90A | 2500V 1MIN | 100MΩ MIN | 22MM² MAX | 4Poles | 116x55.5x36.2 |
| IN100K-C-3P-GD | 600V | 130A | 2500V 1MIN | 100MΩ MIN | 38MM² MAX | 3Poles | 125.4x73.8x40.5 |
| IN100K-C-4P-GD | 600V | 130A | 2500V 1MIN | 100MΩ MIN | 38MM² MAX | 4Poles | 158x73.8x40.5 |
