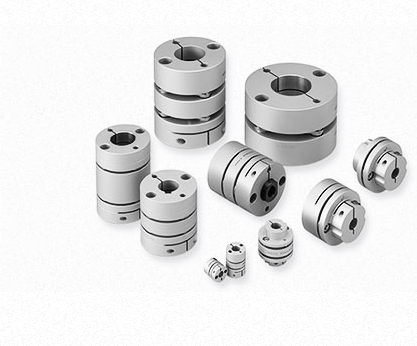

日本三木联轴器SFC-010SA2-6.35B-8B
发布时间：2024-03-26
 SFC-002SA2 | 3 | 5 | 3 | 5 | 12 | 12.4 | ─ | 12.35 | 5.9 | 0.55 | ─ | 3.7 | 1.9 | 5.6 | 1-M1.6 | 0.23～0.28 | Ｃ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SFC-005SA2 | 3 | 6 | 3 | 6 | 16 | ─ | ─ | 16.7 | 7.85 | 1 | ─ | 4.8 | 2.5 | 6.5 | 1-M2 | 0.4～0.5 | C |
| SFC-010SA2 | 3 | 8 | 3 | 8 | 19 | ─ | ─ | 19.35 | 9.15 | 1.05 | ─ | 5.8(6) | 3.15 | 8.5 | 1-M2.5(M2) | 1.0～1.1(0.4~0.5) | C |
| SFC-020SA2 | 4 | 10 | 4 | 11 | 26 | ─ | ─ | 23.15 | 10.75 | 1.65 | ─ | 9.5 | 3.3 | 10.6 | 1-M2.5 | 1.0～1.1 | C |
| SFC-025SA2 | 5 | 14 | 5 | 14 | 29 | ─ | ─ | 23.4 | 10.75 | 1.9 | ─ | 11 | 3.3 | 14.5 | 1-M2.5 | 1.0～1.1 | C |
| SFC-030SA2 | 5 | 10 | 5 | 10 | 34 | ─ | 21.6 | 27.3 | 12.4 | 2.5 | 8 | ─ | 3.75 | 14.5 | 1-M3 | 1.5～1.9 | A |
| 5 | 10 | 10を超え | 16 | 8 | 12.5 | B | |||||||||||
| 10を超え | 14 | 10を超え | 16 | ─ | ─ | 12.5 | C | ||||||||||
| SFC-035SA2 | 6 | 16 | 6 | 19 | 39 | ─ | ─ | 34 | 15.5 | 3 | ─ | 14 | 4.5 | 17 | 1-M4 | 3.4～4.1 | C |
| SFC-040SA2 | 8 | 15 | 8 | 15 | 44 | ─ | 29.6 | 34 | 15.5 | 3 | 11 | ─ | 4.5 | 19.5 | 1-M4 | 3.4～4.1 | A |
| 8 | 15 | 15を超え | 24 | 11 | 17 | B | |||||||||||
| 15を超え | 19 | 15を超え | 24 | ─ | ─ | 17 | C | ||||||||||
| SFC-050SA2 | 8 | 19 | 8 | 19 | 56 | ─ | 38 | 43.4 | 20.5 | 2.4 | 14.5 | ─ | 6 | 26 | 1-M5 | 7.0～8.5 | A |
| 8 | 19 | 19を超え | 30 | 14.5 | 22 | B | |||||||||||
| 19を超え | 25 | 19を超え | 30 | ─ | ─ | 22 | C | ||||||||||
| SFC-055SA2 | 10 | 30 | 10 | 30 | 63 | ─ | ─ | 50.6 | 24 | 2.6 | ─ | 23 | 7.75 | 31 | 1-M6 | 14～15 | C |
| SFC-060SA2 | 11 | 24 | 11 | 24 | 68 | ─ | 46 | 53.6 | 25.2 | 3.2 | 17.5 | ─ | 7.75 | 31 | 1-M6 | 14～15 | A |
| 11 | 24 | 24を超え | 35 | 17.5 | 26.5 | B | |||||||||||
| 24を超え | 30 | 24を超え | 35 | ─ | ─ | 26.5 | C | ||||||||||
| SFC-080SA2 | 18 | 35 | 18 | 40 | 82 | ─ | ─ | 68 | 30 | 8 | ─ | 28 | 9 | 38 | 1-M8 | 27～30 | C |
| SFC-090SA2 | 25 | 40 | 25 | 45 | 94 | ─ | ─ | 68.3 | 30 | 8.3 | ─ | 34 | 9 | 42 | 1-M8 | 27～30 | C |
| SFC-100SA2 | 32 | 45 | 32 | 45 | 104 | ─ | ─ | 69.8 | 30 | 9.8 | ─ | 39 | 9 | 48 | 1-M8 | 27～30 | C |
