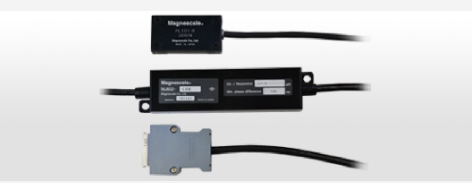

日本magnescale索尼磁栅尺读数头PL101-RABCE
发布时间：2024-04-28
Specifications
| Specifications | |||
|---|---|---|---|
*1 Refer to Dimensions *2 Refer to MJ632 manual Magnescale reserves the right to change product specifications without prior notice. | |||
| Head unit | PL101-RA | PL101-RHA | |
| Interpolator | MJ632-*** | ||
| Protection grade | IP50 or equivalent | IP67 or equivalent (not including connector) | |
| Reference point | Available | ||
| Resolution | 0.2 to 10 µm (Selectable upon ordering*2) | ||
| Accuracy (20°C) | ±10L µm *L≦3000 mm ; ±(10L +2.5N) µm *L≦3000 mm *L: Effective length, N: Integer according to length Refer to specification of SL700 about L and N. | ||
| Clearance*1 | 0.35±0.1 mm | ||
| Offset | ±0.2 mm | ||
| Change in attitude | Pitch*1 | ±0.1° | |
| Yaw*1 | ±0.2° | ||
| Roll*1 | ±0.2° | ||
| Output sginal | A/B quadrature, Reference point signal, Alarm | ||
| Power supply voltage | DC 5V±5% | ||
| Power consumption | Max. 1.0 w | ||
| Maximum response speed | Varies according to the combination of resolution and minimum phase difference*2 | ||
| Head cable length | 300 mm | 3000 mm | |
| Mass | 60 g | 150 g | |
| Operating temperature | 0°C to +45°C | ||
| Storage temperature | -20°C to +50°C | ||
| Extension cable (Option) | CK-T12: 1 m, CK-T13: 3 m, CK-T14: 5 m, CK-T15: 10 m | ||
*Please note that MJ632 is not available as a single item.Dimensions
Product name Common 2D 3D PL101-RA Download Download Download MJ632* Download Download Download
