日本CCS 光源控制器专用传感器镜头AC8312C
发布时间：2024-05-24

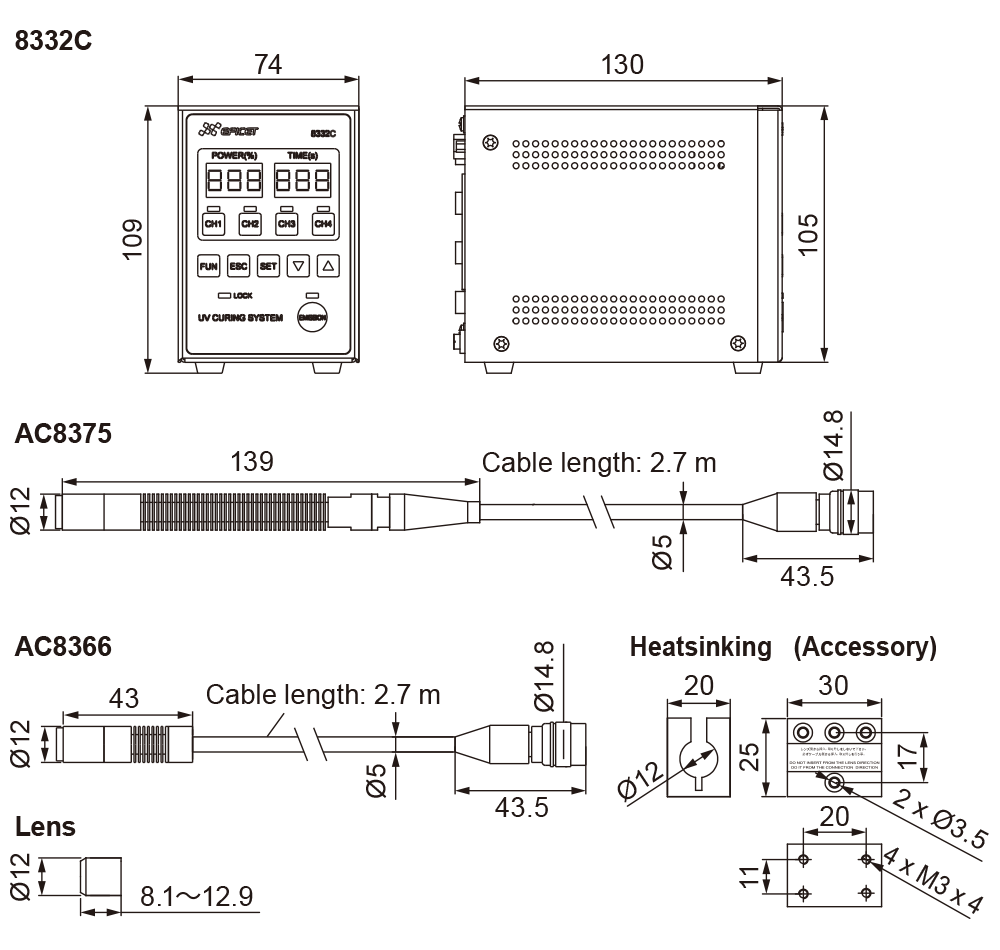

Specifications
Controller
| Model Name | 8332C | ||
|---|---|---|---|
| Irradiation type | Time specified irradiation | Intensity (1 to 100%), Irradiation time (0.1 to 999 sec) | |
| Continuous irradiation | Intensity (1 to 100%), Irradiation time depends on the external signal. | ||
| Communication ports for Controlling | Parallel I/O | Input | Irradiation ON/OFF (Response time: 20 ms), Data bank switching, Interlock |
| Output | Irradiation status output, Warning output, Error output | ||
| RS-232C | Irradiation control, Parameter setting/loading | ||
| Error detection | Unconnected Heads, Circuit shortage/open, Abnormal temperature | ||
| Displaying method | Digital display | ||
| Number of irradiation output ports | 4(Controlled individually) | ||
| Input voltage | AC100 to 240V 50/60Hz (AC adapter included) | ||
| Power consumption | 25 W max. | ||
| Cooling method | Natural air cooling (Without fans) | ||
| Vibration resistance | 10 to 150 Hz, Acceleration: 50 m/s2, Half amplitude: 0.35 mm 10 times/8 minutes in each x, y, and z direction | ||
| Shock resistance | Height: 1.5 m, 3 times in each side (Top and bottom, right and left, front and rear, and 45°) | ||
| Ambient temperature | Operation: 5 to 40°C, Storage: -15 to 65°C (with no condensation, freezing) | ||
| Ambient humidity | 20 to 85% (with no condensation, freezing) | ||
| Material | Steel plate | ||
| Weight | 750 g (Excluding the AC adapter and irradiation heads) | ||
| Accessories | AC adapter, Foot switch, Mounting bracket, Protection glasses, Manual | ||
| CE marking | Safety standard: Conforms to EN60950-1 EMC standard: Conforms to EN55032, EN61000-3-2, EN61000-3-3, EN55024 Environmental regulations: RoHS compliant | ||
Irradiation heads
| Model | AC8375 (Standard head) | AC8366 (Small Head)*1 |
|---|---|---|
| Wavelength | 280nm, 365nm, 385nm, 405nm | 365nm, 385nm, 405nm |
| Allowable Cable Bending Radius | 30 mm | |
| Materials | Copper, Aluminum alloy, Glass | |
| Weight | 150 g (Excluding the mounting bracket) | |
*1 When you install the small head, use the mounting bracket that comes with the product.
