日本MORITEX茉丽特远心镜头MML6-HR65D/LM-100-IR
发布时间：2024-05-31
Moritex
Yes Coaxial Illumination Option
65 mm Working Distance

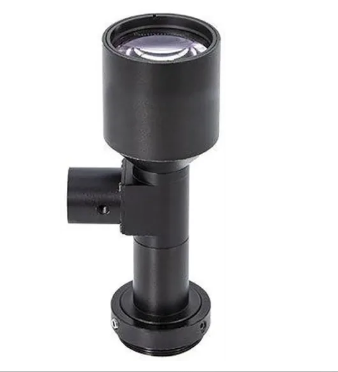

Moritex Telecentric Lens with C-Mount, a fixed magnification of 6.00, a light input and a working distance of 65mm.
This 2/3" telecentric lens avoids perspective distortion and is therefore suitable for demanding measurement applications of three-dimensional lenses.
Lens Data
| Focal Length | 10.5 mm |
|---|---|
| Magnification | 6x |
| Iris | F0.112 |
| Aperture (effective F/#) | F26.7 |
| Iris Type | fixed |
| IR Cut Filter | No |
| Pixel Pitch | 3 µm |
| Mount | C-mount |
| Sensor Format | 2/3" |
| Working Distance | 65 mm |
| Coaxial Illumination Option | Yes |
