日本OKAYA冈谷火花熄灭器CR-50500
发布时间：2024-06-22

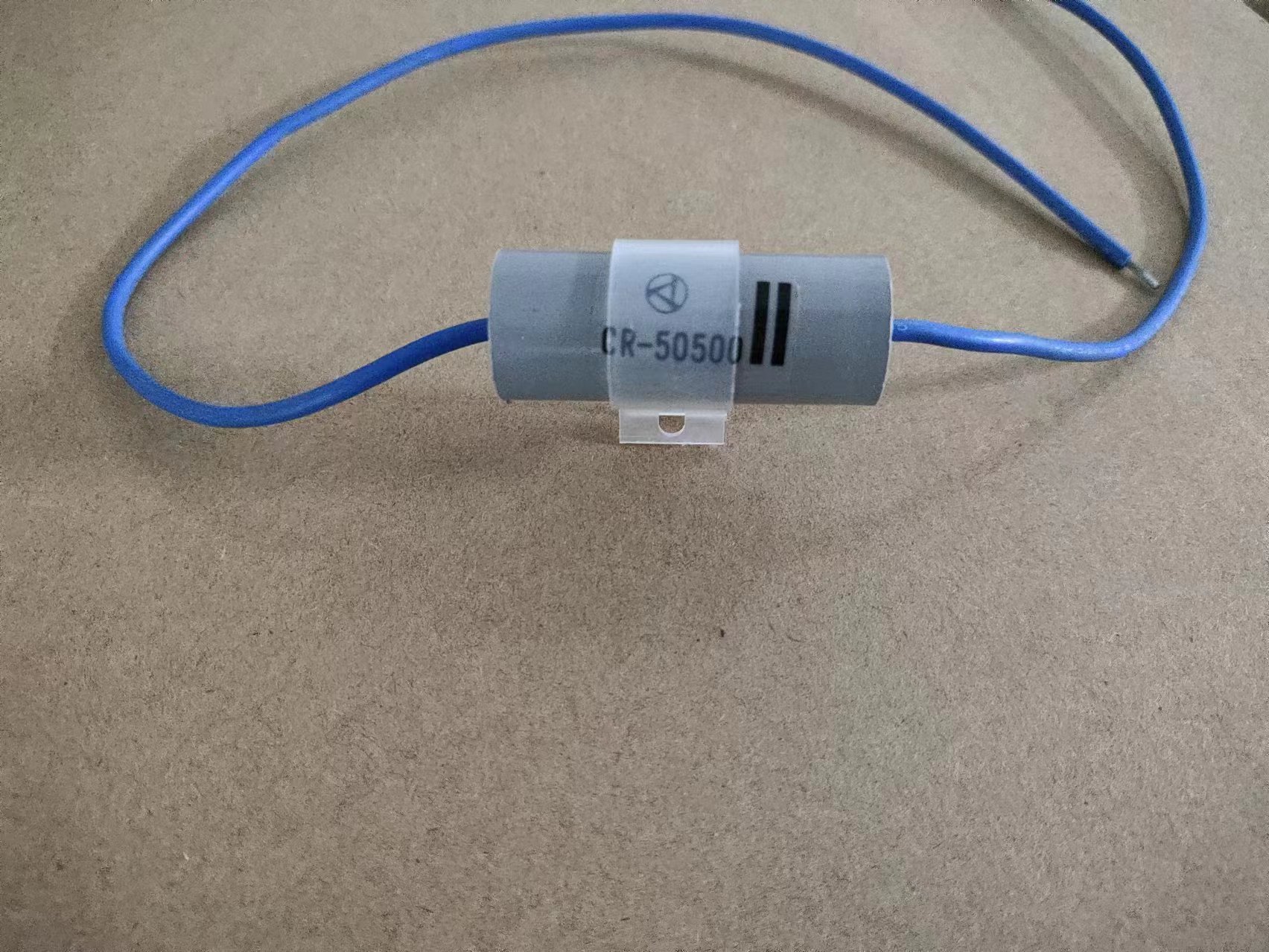

日本OKAYA冈谷火花熄灭器CR-50500
CR-50500
CR Series Spark Quenchers
Pulse Condition (max.)
Peak to Peak
700V
Repetitive Frequency
360Hz
Peak Pulse Voltage
800V
Test Voltage
Line to Line
625VAC 50/60Hz 60 sec
Line to Case
2,000VAC 50/60Hz 60 sec
Insulation Resistance
Line to Line
10,000MΩ min
Line to Case
10,000MΩ min (at 500VDC)
Operating Temperature
-40~+85°C
Features
General purpose spark quencher
Tubular shape and easy mounting
Applications
Contact protection (quenching the contact spark) / absorption of back electromotive surge voltage in consumer electronics equipment, office automation equipment, automation machines or machine tools.
