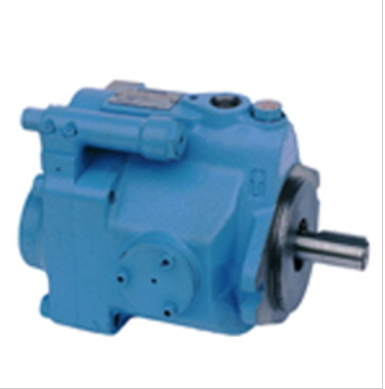

日本DAIKIN大金柱塞泵V15A2R-95/V38A1RX-95
Configured Specifications
| Type | Pump | Motor | No |
|---|---|---|---|
| Theoretical Discharge per Process(cm3/rev) | 14.8 | Mounting Method | No Mounting Fitting |
| Range of Working Oil Temperatures(℃) | ～45 or Less | Pump Type | Piston Pump |
| Control Method | Pressure Compensator Control | Pressure Adjustment Range(Mpa {kgf/cm2}) | 1.5~14 {15~140} |
| Direction of Piping Connection | Axial Port | Allowable Rotational Speed(min) | 500~1800 |
| Suction Connection Port | G1 | Discharge Connection Port | G1 |
| Show More | |||
Product Description
Features high responsiveness and stability, while also boasting a long service life. Helps improve the reliability of the main machine. Suffers little from power loss, helping reduce increases in oil temperature. Also helps minimize the required tank capacity. Delivers quiet operation across the entire pressure range for each product series.
[Features]
· Delivers quiet operation across the entire pressure range for each product series.
· Suffers little from power loss, helping reduce increases in oil temperature. Also helps minimize the required tank capacity.
· Features high responsiveness and stability, while also boasting a long service life. Helps improve the reliability of the main machine.
| 型番 |
|---|
V38A1RX-95 |
(cm3/rev) | (Mpa {kgf/cm2}) |
|---|
37.7 | プレッシャコンペンセータ制御 | 0.8～7{8～70} | サイドポート | G1 1/4 | G1 1/4 | 364-9776 |
基本情報
【特長】
・各シリーズとも全圧力域にわたり低騒音化を実現しています
・損失動力が小さいため、油温上昇を低減できるので、タンク容量を小さくできます
・高応答、高安定性、長寿命を有するので、主機の信頼性を向上させることが可能です
