BF-XMB
WINSTAT Series
Lightweight and equipped with HDC-AC, this ionizer is ideal for saving space. The static elimination area can be selected using two types of louvers.
Purpose：
Semiconductors/Electronic devicesLCD panelsAssembly processesPC board mounting processesInspection processesPrinting, coating processesWrapping/Packaging processesResin moldsFilmsGlassDust, foreign matterParts feedersShort rangeSpace-saving
Function：
Product features
Compact Air Ionizer WINSTAT BF-XMB is slim and light-weight designed desktop ionizer with featuring SSD high technology HDC-AC that has long term and stable static elimination capabilities.
With Plastic body, its total weight perform less 30%.
Safety operation with minute discharge detection and over current detection.
Wide or straight ionization with two kinds louver part.
(Left) ：Wide angle Louver
(Right)：Straight Louver
Options
(Left) ：Emitter needle unit(DNU-W60)
(Right)：Filter for replacement(10 sheets package)(OBF-FZA-1-10)

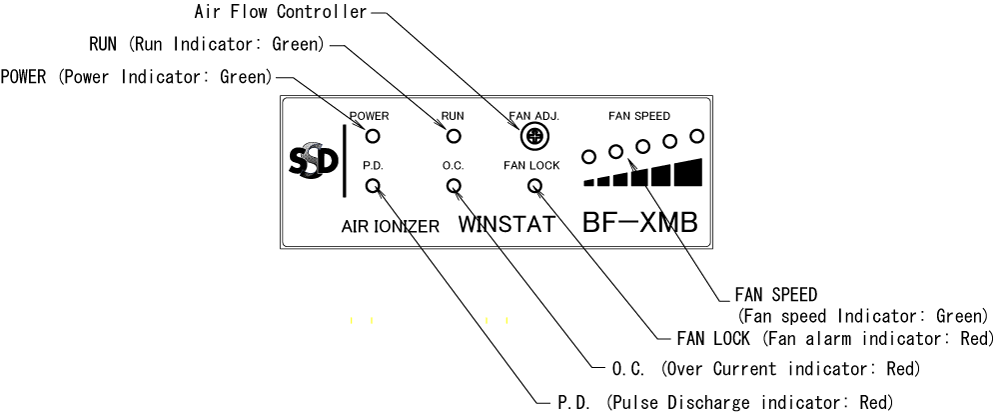

Indicator Panel

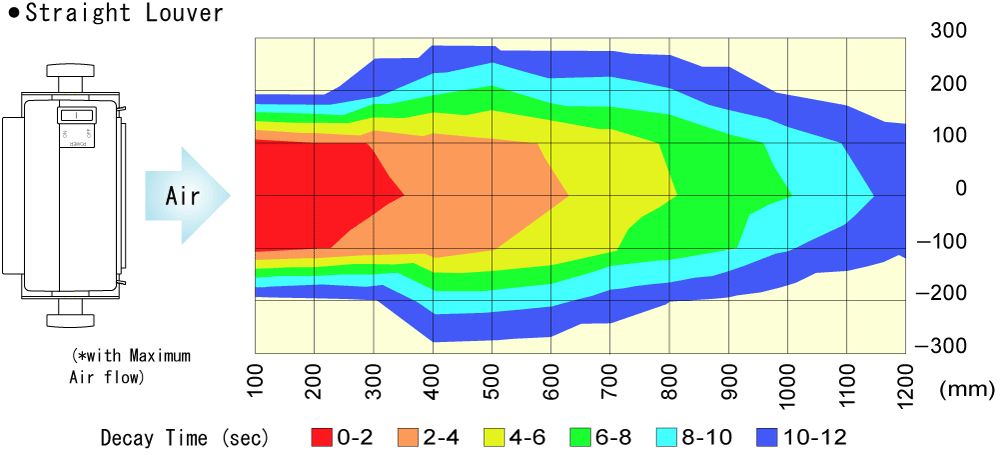

louver panel static elimination features and static elimination area
＊ Test by CPM with 150x150mm plate (20pF)
＊ Above data is actual data not for guaranteed.
Specification
| Model | BF-XMB |
|---|---|
| Input power supply | 24 VDC (with AC 100~240V ACadapter) |
| Electric consumption | 6 VA |
| Output voltage | ±7,000 V0-p |
| Ion balance | ±10V or less (Distance at 300mm) |
| Air Volume | 0.7 to 1.2 m3 / min |
| Air speed | 1.2 to 1.9 m / sec (with Straight Louver at 300mm center) 0.7 to 1.2 m / sec (with Wide angle Louver at 300mm center) |
| Ozone density | 0.004 ppm or less (distance 150 mm) |
| Operating Environment | 0 to 40℃ / 15 to 85% RH (no condensation) |
| Filter | Pre-filter level |
| Output signal | Normal: ON, Abnormal (HV alarm or fan alarm with Red LED light): OFF MOS FET Relay, Normally Closed contact. Maximum current: 200mA, Voltage: Below 30VDC. |
| Main unit dimensions | 104×126×67 mm (W×H×D) not including projecting portion |
| Weight | Approx. 560g (including stand) |
| Noise | 51 dB(A) (distance 1 m) |
| Accompanying items | Operation manual, AC adapter, signal output cable, cleaning brush, Wide angle louver |
| Optional parts | Emitter needle unit :DNU-W60 Filters :OBF-FZA-1-10(package of 10) |
