日本Showgiken昭和技研接头RXE5215LH/RXE5215RH
发布时间：2024-07-23
日本Showgiken昭和技研接头RXE5215LH/RXE5215RH

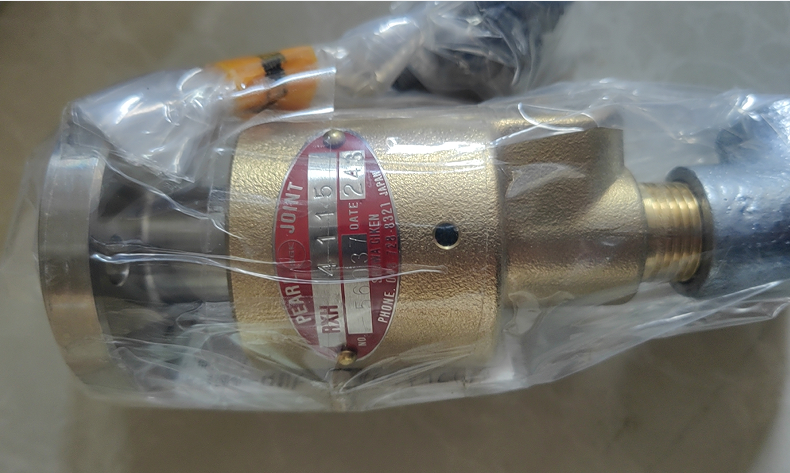

Pressure Rotary Joint Pearl Rotary Joint RXE5000 (Both Directions Inner Tube Rotation Screw-in Type) (RXE5215LH)
Part Number: RXE5215LH
RXE5000 (Dual, screwed type, with rotating inner tube) is a rotary joint for supplying the medium to rotary equipment in a stable manner.
Configured Specifications
| Types | Duplex Inner Tube Rotary | Compatible Fluid | Water / Air / Gas / Oil |
|---|---|---|---|
| Maximum Operating Temperature(°C) | 100 | Maximum Operating Pressure(MPa) | 2.25 |
| Maximum Rotational Speed(rpm) | 3500 | Connection Type | Screw Mounting Type |
| Types of Connection Screw for Elbow Side (Composite) | Rc | Types of Connection Screw for Head Side (Composite) | Rc |
| Type of Connection Thread for Rotor Side (Composite) | M | Nominal Connection Screw for Elbow Side (Composite) | 3/8B(10A) |
| Nominal Connection Screw for Head Side (Composite) | 1/2B(15A) | Mounting Screw Direction | LH (Left Screw) |
