Address Writer
| Product specifications | Details | Dimensions (mm) | Model | Standard price (￥) | Product Guide | CAD(Plan view) | Comformance and Compliance |
|---|---|---|---|---|---|---|---|

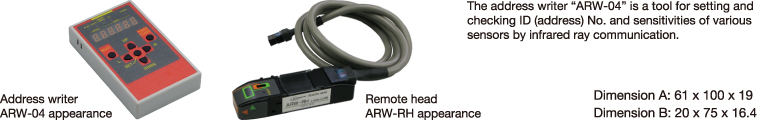

| Address setting Parameter setting Teaching [Reading/writing] | Non-contact setting portable tool by infrared communication 7 segment display, driven by dry battery | A | ARW-04 ※ | Open |  | CE, RoHS, China RoHS "10" | |
| Infrared remote head for setting address, parameter in narrow locations | B | ARW-RH | Open |  | | CE, RoHS, China RoHS "e" | |
| Address writer ARW-04 + infrared remote head | － | ARW-04-RH | Open | The model No. is for the combination of the upper 2 models. | | CE, RoHS, China RoHS "10" |
"ARW-04" was developed by adding some functions to "ARW-03". Its mechanical specifications have not been changed.
* Please contact us for conformance and compliance other than UL and KC stated above.

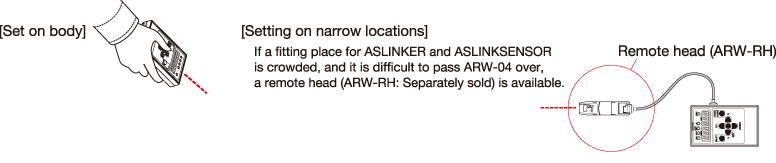

■Image of setting
■Address writer operation items
Modes which can be set by ARW-04 as follows.
| Purpose | Procedure | Mode selected (function) |
|---|---|---|
| ARW-04 initial setting | Press POWER switch while pressing SELECT switch | Maximum point number setting mode |
| Maximum parameter number setting mode | ||
| Decimal number or hexadecimal number display setting mode | ||
| Parameter set value automatic carry presence/absence setting mode | ||
| Address writer mode | ||
| Teaching | Direct update | EX mode |
| Address reading | Direct reading | READ mode |
| Address writing | Power reset update | WRITE mode |
| Direct update | DIRECT WRITE mode | |
| Parameter reading | Direct reading | READ mode |
| Parameter writing | Power reset update | WRITE mode |
| Direct update | DIRECT WRITE mode |
