日本无机Nipponmuki集雾器过滤器PCL2-128R-RUY
发布时间：2024-08-09
日本无机Nipponmuki集雾器过滤器PCL2-128R-RUY
Air outlet unit
Cleancell 2

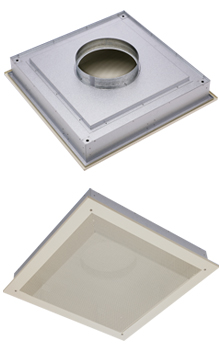

![[photo]Air outlet unit](https://www.nipponmuki.co.jp/dcms_html/e/products/clean-room/img/pict_pcl201.jpg)
By assembling our thin type large air volume minipleats filter, we remarkably succeeded in reducing thickness and weight.
Standard specification (example)
| Item | Standard | |
|---|---|---|
| Type | PCL2-128R-RUY | |
| Rated air volume (m3/min) | 28 | |
| Initial pressure drop (Pa) | 245 | |
| Filter | Name | HEPA filter |
| Type | ATMLK-28-E23 | |
| Collection efficiency | 99.99% (0.3µm airborne particle) | |
| Size | 610 x 610 x 75 | |
| Quantity | 1 unit | |
| Body | Made of galvalume steel plate (SGLCC) | |
| Rivet connection /silicone seal finishing | ||
| Media guard | Punching metal made of steel plate | |
| Melamine resin heated painting | ||
| Weight | Approx. 20kg (including filter 5kg) | |
Product outline

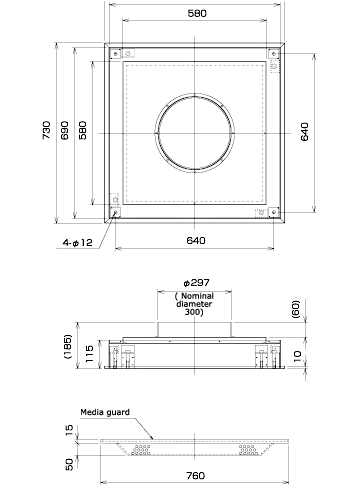

![[figure]Air outlet unit structure drawing](https://www.nipponmuki.co.jp/dcms_html/e/products/clean-room/img/stru_pcl201.gif)

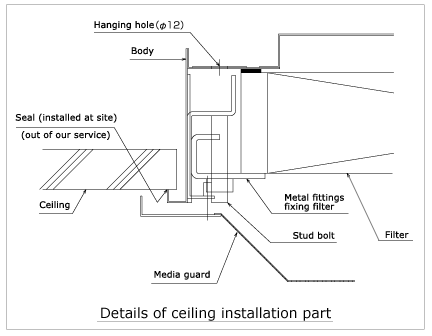

![[figure]Details of ceiling installation of air outlet unit](https://www.nipponmuki.co.jp/dcms_html/e/products/clean-room/img/stru_pcl202.gif)
![[photo]Case with Air outlet unit](https://www.nipponmuki.co.jp/dcms_html/e/products/clean-room/img/pict_pcl202.jpg)
![[photo]Case with Air outlet unit](https://www.nipponmuki.co.jp/dcms_html/e/products/clean-room/img/pict_pcl203.jpg)
