日本Ihara井原接头SJH508-408 SJH508-508

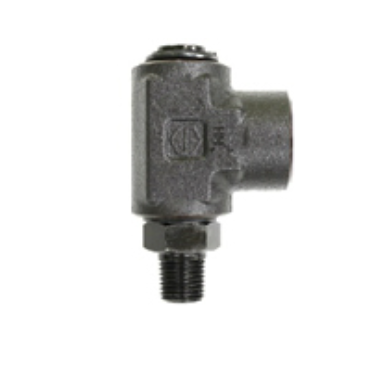

Swivel Joint SJH Shape
Part Number: SJH508-508
Swivel joint for general hydraulic pressure. Effective anti-torsion measure for hydraulic hoses that offers improved durability.
[Features]
· Used for pressure piping, this is a joint that allows slow rotation or oscillation (reciprocating rotary motion) and is used mainly for connecting a fixed pipe to a high-pressure hose. It is useful for preventing unreasonable hose attachment and twisting.
· In order to handle extreme applications, the rotor outer surface (the rotation sliding part) is treated with surface hardener, and a slipper seal with extremely low wear is used in order to suppress co-rotation of the O-ring and to prevent wear.
Configured Specifications
Download
| Types | Swivel Joints | Compatible Fluid | Oil |
|---|---|---|---|
| Maximum Operating Temperature(°C) | 95 | Connection Type | [Screw ⇔ Screw] Elbow |
| Type of Connection Thread Supply Side (Single Unit, Swivel) | Rc | Type of Connection Thread Exhaust Side (Single Unit, Swivel) | Rc |
| Nominal Connection Thread Supply Side (Single Unit, Swivel) | 1 | Nominal Connection Thread Exhaust Side (Single Unit, Swivel) | [1B] 1 |
