日本BIG大昭和高精密筒夹NBC16-8AA/NBC16-10AA
发布时间：2024-08-31
日本BIG大昭和高精密筒夹NBC16-8AA/NBC16-10AA

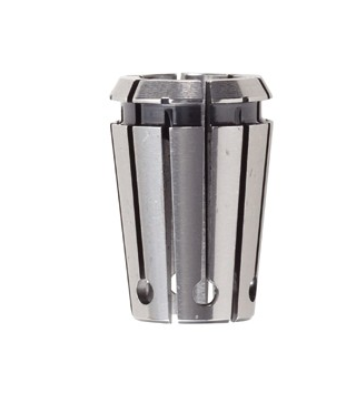

Collets (NBC16-14.0-AA)
New Baby Collet, High Precision, MEGA13N/16N/20N
Part Number: NBC16-14.0-AA
[Features]·Demonstrates outstanding power at ultra-high speed rotation. [Specifications]·For Mega New Baby Chuck / New Baby Chuck
Configured Specifications
Download
| Product Category | Attachments/Accessories | Retainable blade diameter(mm) | 13.5～14.0 |
|---|---|---|---|
| Dimension B(mm) | 35 | φA(mm) | 25.5 |
| Maximum Gripping Diameter(mm) | 14 | Compatible Main Body Size(mm) | 16 |
| Compatible Baby Chuck | MEGA16N/NBS16 | Shrinkage allowance(φ) | 0.5 |
| Feature | The world-class runout accuracy of 1 μm at the nose demonstrates an outstanding power even at super high speed rotation. | Specification | For Mega New Baby Chuck / New Baby Chuck |
| Runout accuracy (nose) | Within 1 μm | Runout accuracy (4D edge) | Within 3 µm |
| Class | AA | - | - |
