日本CCS希希爱视顶灯LFXV-150SW/PFB3-20SW-SJT-MO(A)
发布时间：2024-11-28
日本CCS希希爱视顶灯LFXV-150SW/PFB3-20SW-SJT-MO(A)
日本CCS希希爱视顶灯LFXV-150SW

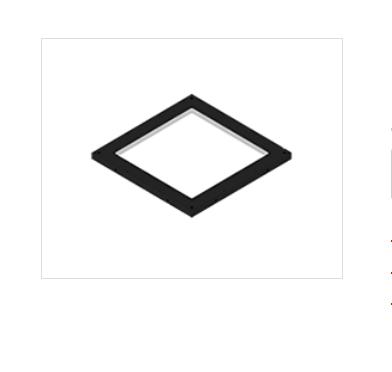

LFXV-150SW
This Light Unit emits white light and measures 193 x 193 x 16 mm (width x depth x height).
The light-emitting surface measures 150 x 150 mm.
The new type of LFX Series.
Product Details
| LED color | White |
|---|---|
| Correlated color temperature | 5,500 K typ. |
| Dimensions | W 193 mm x D 193 mm x H 16 mm |
| Input voltage | 24VDC |
| Power consumption | 30 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, Resin (protective plate, light-guiding plate) |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation) (indoors only) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 870 g max. |
| Accessories | User Manual |
