日本CCS希希爱视面光源TH2-51X51RD/INC PTU2-3012-A
发布时间：2024-12-14
日本CCS希希爱视面光源TH2-51X51RD/INC PTU2-3012-A
日本CCS希希爱视面光源TH2-51X51RD/INC PTU2-3012-A

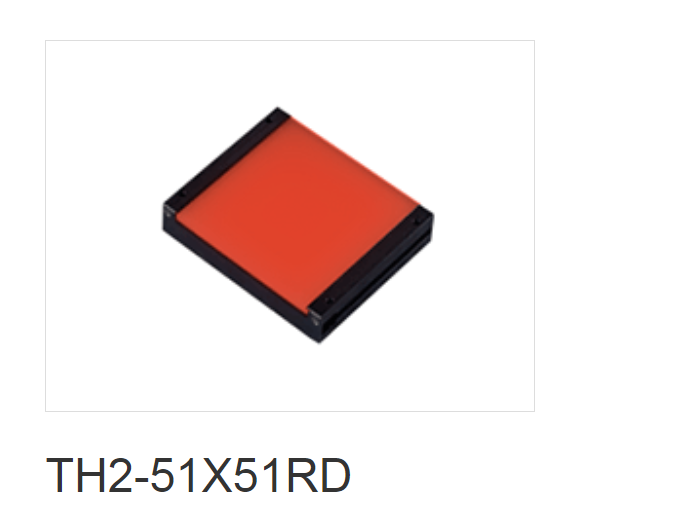

TH2-51X51RD
This Light Unit emits red light and measures 53 x 63 x 15 mm (width x depth x height).
The light-emitting surface measures 51 x 51 mm.
High-luminance type.
Product Details
| LED color | Red |
|---|---|
| Peak wavelength | 635 nm typ. |
| Dimensions | W 53 mm x D 63 mm x H 15 mm |
| Input voltage | 24VDC |
| Power consumption | 6.5 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 60 g max. |
| Accessories | User Manual |
