日本showa-sokki昭和测器位移传感器TCL-10FA
TCL-FA

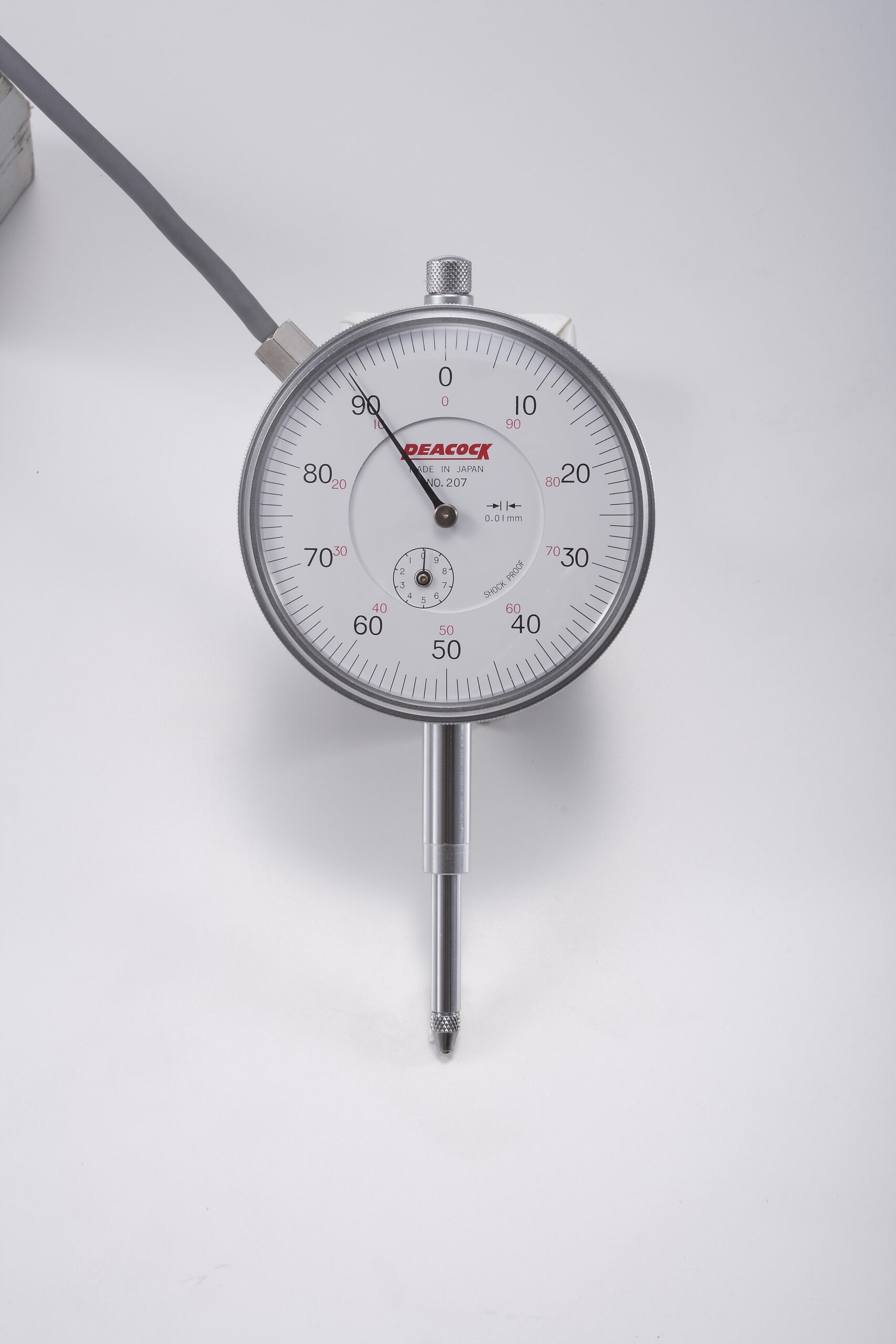

Features Easy to handle because of the dial gage system employed (Graduation: 0.01mm). Less variation with lapse of time because of the cantilever system employed. Excellent thermal characteristics because of the compensation circuit inserted into the system. Can make calibration simply by utilizing graduations on the dial gage (Note that the dial graduations show calibration reference values only). Accuracy class: 0.5% RO. Model and Capacity / Dimension / etc. (unit : mm) * The weight indicated in the tables of this data sheet does not include the weight of cables.

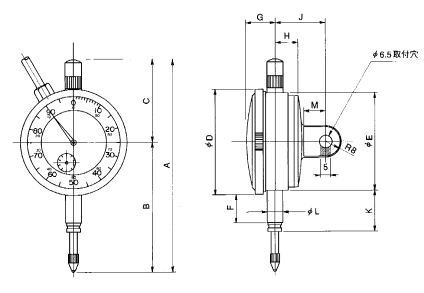

Appearance Dimensions
Model Capacity A B C D E F G H J K L M Reaction force(N):start point/end point Weight TCL-5FA 5 mm 106.5 65 41.5 52.8 49 14.1 14.5 11.5 25 20.5 8 11 0.5/1.6 155 g TCL-10FA 10 mm 106.5 65 41.5 52.8 49 14.1 14.5 11.5 25 20.5 8 11 0.5/1.8 155 g TCL-20FA 20 mm 129.5 88.5 41 66.5 62.5 20 14.5 12 24 27 8 10.5 0.6/2.0 170 g TCL-30FA 30 mm 146.5 100.5 46 77.5 72.5 17.3 17.5 11 24 24.3 8 11 0.6/2.2 220 g Specifications
Rated Output 1.5 mV/V±1 % Nonlinearity 0.5 %R.O. Hysteresis 0.5 %R.O. Repeatability 0.3 %R.O. Excitation Voltage 3 V (or less) Safe Excitation Voltage 4 V Input Rsistance 350 Ω Output Rsistance 350 Ω Compensated Temp.Range 5～40 ℃ Safe Temp.Range 5～50 ℃ Temp.Effect on Zero 0.02 %R.O./℃ Temp.Effect on Output 0.02 %/℃ Cable Φ4mm-4wire shielded cable, length : 0.3ｍ Attached connector Jack ／PRC03-32A10-7F
