日本千代田CHIYODA气管TP-6Y/TE-6-BK-20M/TE-8-AF-BK-100
发布时间：2024-08-05
日本千代田CHIYODA气管TP-6Y/TE-6-BK-20M/TE-8-AF-BK-100

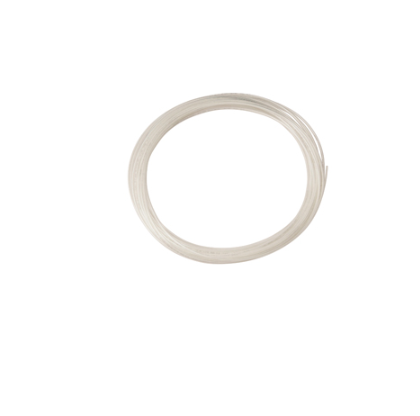

Tubing (TP-6Y-100)
Polyurethane, Touch Tube, TP Series
Part Number: TP-6Y-100
Polyurethane tube with superior flexibility that achieves small bending radius.
[Features]
· Soft and difficult to break: superior flexibility, very small bending radius.
· Excellent oil resistance: Suitable for air piping in a plant.
· Excellent wear resistance: superior mechanical strength and wear resistance, optimal for equipment piping and robot piping, superior outer diameter accuracy.
· Cut marks and model view: cut marks printed at 1 m intervals; optimal for cutting work and inventory control
Configured Specifications
Download| Type | Straight | Material | Urethane |
|---|---|---|---|
| Color | Yellow | Outer Diameter Class | ~6 |
| Compatible Fluid | Compressed Air | O.D.(Ø) | 6 |
| Inner Diameter Class | ~4 | I.D.(Ø) | 4 |
| Material: Urethane | Polyurethane | Minimum Bending Radius(mm) | 12 |
| Operating Environment | Standard / Vacuum / Abrasion Resistance / Oil Resistance | Operating Temperature Range (Using Air)(°C) | -5～60 |
