日本新机械NEW MACHINE接头8NPM-BS

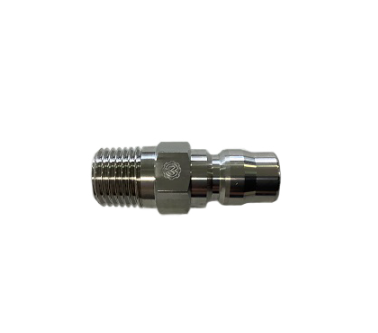

Plug (8NPM-BS)
No-Valve NSP Type, NPM Series
Part Number: 8NPM-BS
Since the pressure loss is small, this coupler is optimal for the piping of highly viscous fluid, powder, steam, grease, and chemical fluids.
Configured Specifications
| Types | Standard | Body Material | [Brass] Brass (BSBM) |
|---|---|---|---|
| Seal Material | No | Applicable Fluids | Water / Air / Water Vapor / Oil / Powder |
| Plug (Male) / Socket (Female) | Male Plug | Structure of Valve | [Dual Passage Opening] Double passages opening type |
| Types of connection parts | [Threaded Type] Threaded | Operating Environment/Applications | Standard / Vacuum / Plant Piping / Industrial Machinery / Physics and chemistry equipments / Foods・Beverage Equipment |
| Operating Pressure Range(MPa) | ～2.9 | Type of Connection Thread T | R1 |
| Minimum Sectional Area(mm2) | 491 | RoHS | - |
Part Number: 8NPM-BS

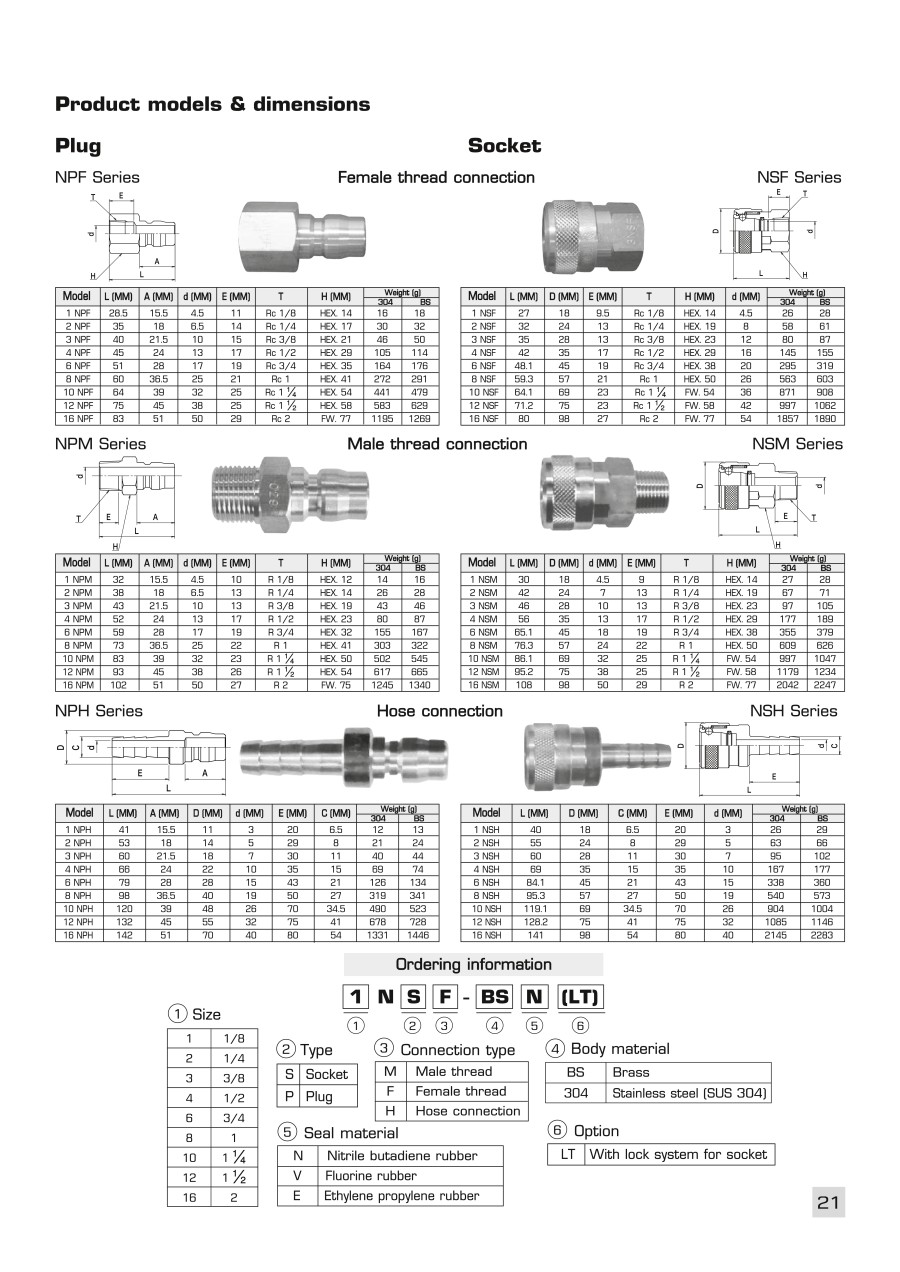

Catalog
