德国IFM易福门电子液位传感器LK8122
发布时间：2024-08-29

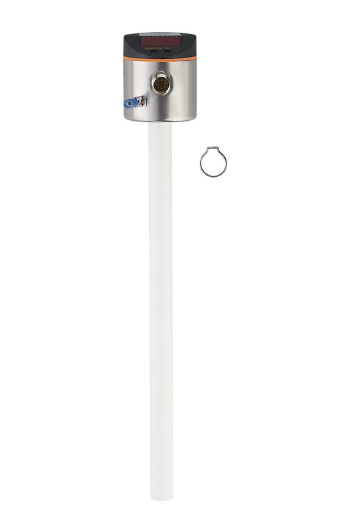

德国IFM易福门电子液位传感器LK8122
Electronic level sensor
LK8122
LK0264B-B-00KVPKG/US
For the reliable level control in tanks and containers
Suitable for water, oils and coolants
Clearly visible numerical display
Convenient operation via buttons or parameter setting via IO-Link
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 4 |
|---|---|
| Factory setting | hydrous coolants; water; media similar to water |
| Probe length L [mm] | 264 |
Application
| System | gold-plated contacts |
|---|---|
| Media | hydrous coolants; oils; oil-based media; water; media similar to water |
| Dielectric constant of the medium | > 2 |
| Cannot be used for | extremely conductive media; adhering media; granulates; bulk material; acids; alkali; food and electroplating industry |
| Maximum speed of the change of level [mm/s] | 100 |
| Tank pressure [bar] | 0.5; (when mounting with mounting accessories: E43001 - E43007, E43019) |
Coolants
| Medium temperature [°C] | 0...35; (with climate tube E43100: 35...65 °C) |
|---|
Oil
| Medium temperature [°C] | 0...70 |
|---|---|
| Medium temperature short time [°C] | 0...90; (< 1 h) |
Water
| Medium temperature [°C] | 0...35; (with climate tube E43100: 35...65 °C) |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 3 |
| Measuring principle | capacitive |
