德国IFM易福门电感式传感器II5851 IIK3010-BPKG
发布时间：2024-08-29

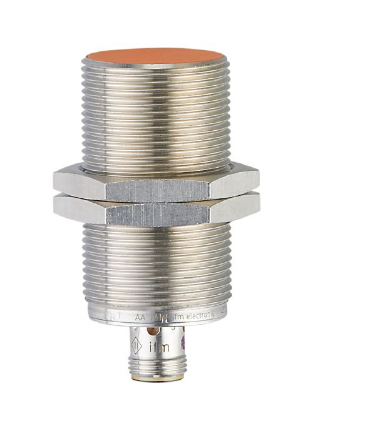

德国IFM易福门电感式传感器II5851 IIK3010-BPKG
Inductive sensor
II5851
IIK3010-BPKG/US-104
Robust metal housing for use in harsh industrial environments
Clearly visible indication of the switching status
Wide operating temperature range
For a precise position detection on machines
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 10 |
| Housing | Threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 60 |
Application
| System | gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 10 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Short-time current rating of switching output [mA] | 200 |
| Switching frequency DC [Hz] | 400 |
| Short-circuit protection | yes |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 10 |
|---|---|
| Real sensing range Sr [mm] | 10 ± 10 % |
| Operating distance [mm] | 0...8.1 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2EN 55011class B |
|---|---|
| MTTF [years] | 1083 |
| Embedded software included | no |
| UL approval | Ta0...40 °CEnclosure typeType 1voltage supplyHazardous voltageUL approval numberA004File number ULE174191 |
Mechanical data
| Weight [g] | 115.8 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 60 |
| Thread designation | M30 x 1.5 |
| Material | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
